Tri-Clamp BSPT Male Adapter

Product Model: 21MPT

The 21MPT Tri-Clamp BSPT Male Adapter connects sanitary Tri-Clamp tubing systems to threaded tubes or equipment. It has a Tri-Clamp connection on one end and a BSPT male thread on the other end, making it easy to connect sanitary and threaded tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1/2" × 1/2"–4" × 4"

Material: SUS304, SUS316L

Connection: Tri-Clamp × BSPT Male Thread

Thread Standard: BSPT

Specifications

UNIT: mm

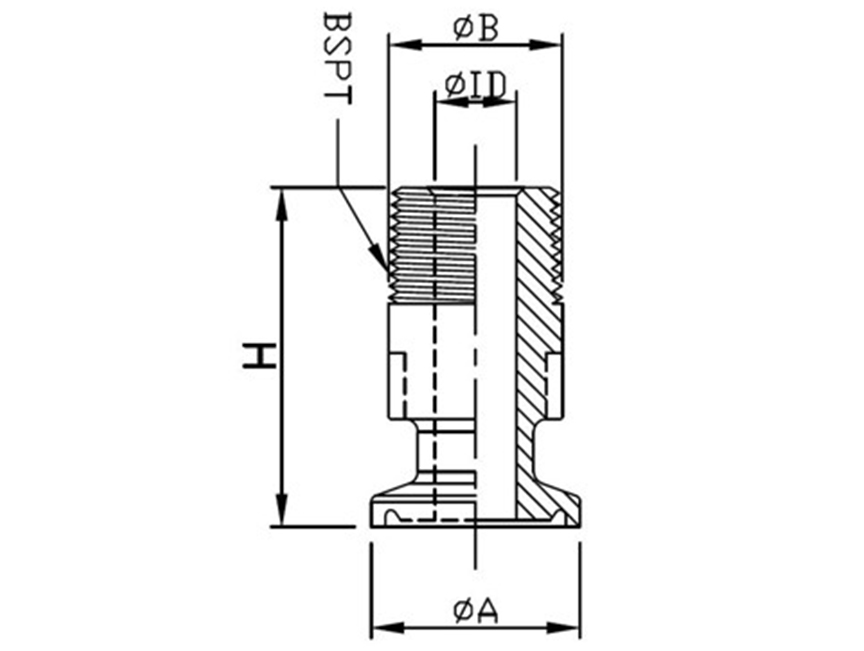

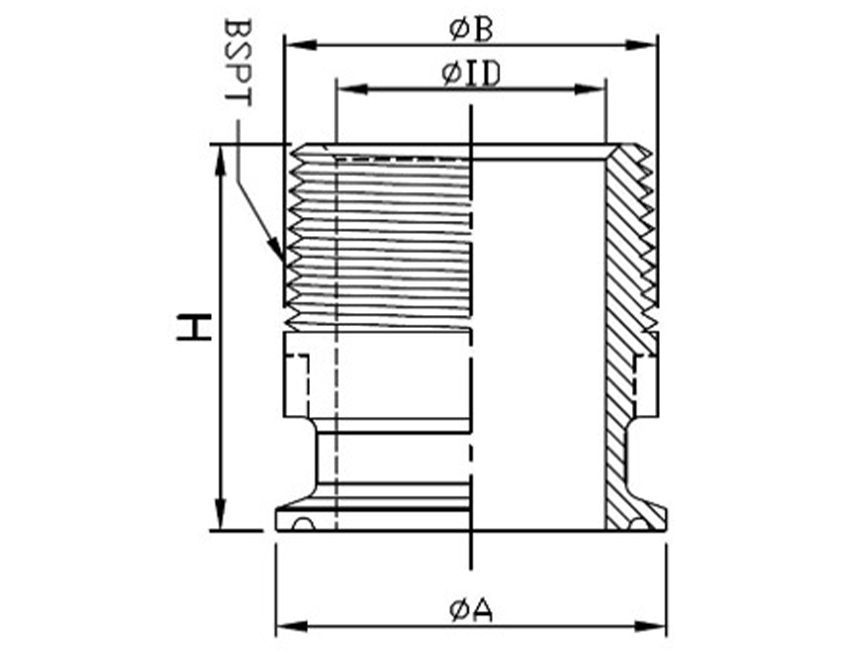

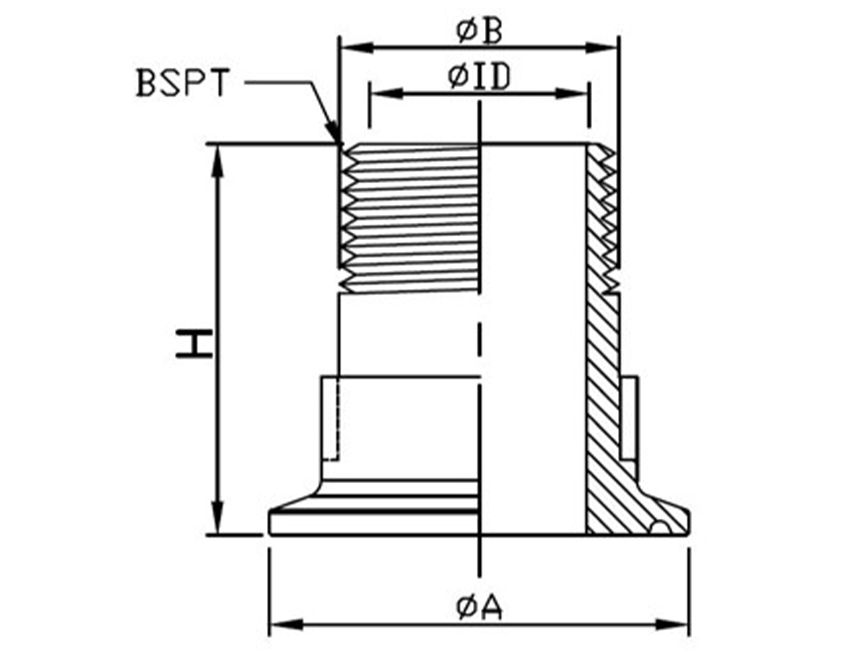

SIZE ØA ØID ØB H BSPT
1/2" x 1/2" 25.2 9.8 21.5 41 1/2"
3/4" x 1/4" 25.2 9.6 17 41 1/4"
3/4" x 3/8" 25.2 9.8 21 41 3/8"
3/4" x 1/2" 25.2 15.8-9.8 21.5 41 1/2"
3/4" x 3/4" 25.2 15.8 27 41 3/4"
1.5" x 1/4" 50.5 9.6 14 43 1/4"
1.5" x 3/8" 50.5 10.8 35 40 3/8"
1.5" x 1/2" 50.5 15.8 21.5 43 1/2"
1.5" x 3/4" 50.5 20.8 27.5 43 3/4"
1.5" x 1" 50.5 25.8 33.7 47 1"
1.5" x 1.2" 50.5 29.5 42.2 50 1.2"
1.5" x 1.5" 50.5 34.8 48.5 50 1.5"
2" x 1" 64 26 37 45 1"
2" x 1.2" 64 33 47 50 1.2"
2"x 1.5" 64 39 48.5 50 1.5"
2" x 2" 64 43.0-50.0 61 50 2"
2.5" x 2.5" 77.5 60.2 76 60.1 2.5"
3" x 3" 91 72.5-77.0 93 60 3"
4" x 4" 119 97.5-103.0 119 75 4"
