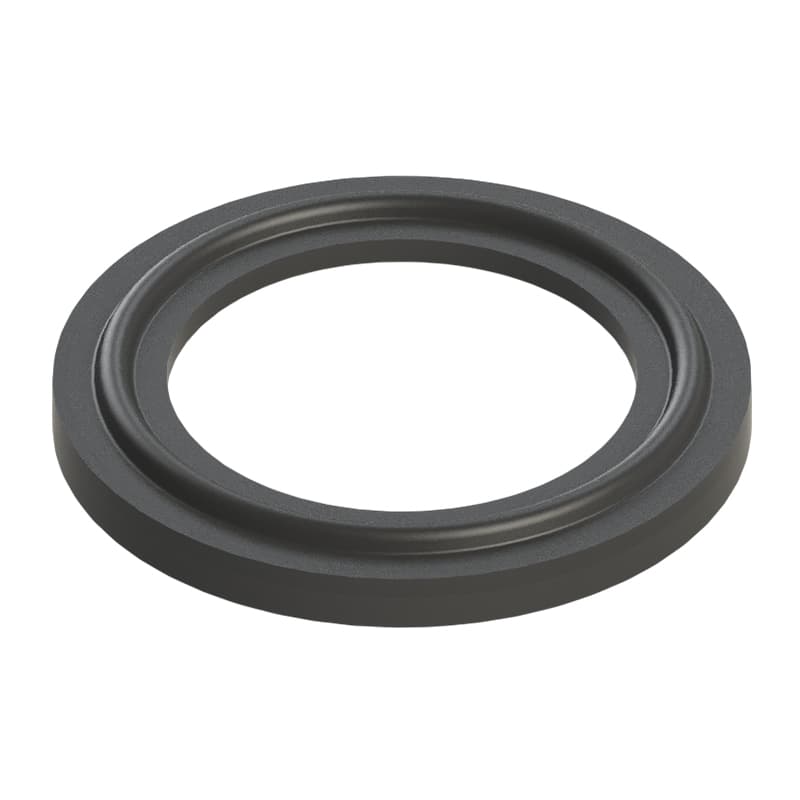

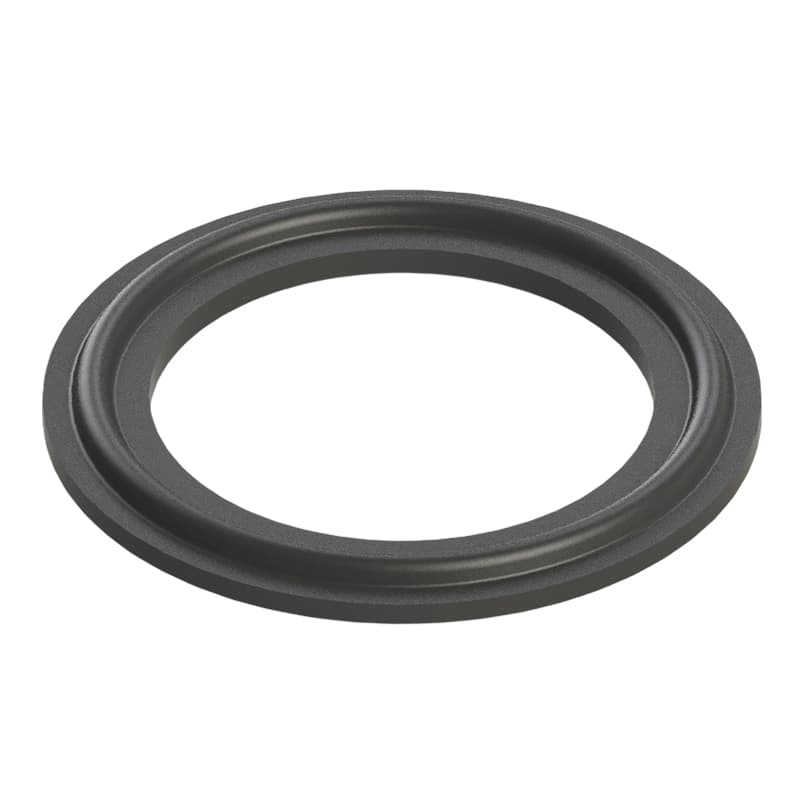

Tri Clamp Gasket

Sanitary gasket designed for secure sealing in Tri-Clamp connections, suitable for a wide range of sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
Details

Type: TYPE 1,TYPE2(Lipped)

Material: EPDM, Silicone, Viton,PTFE

Application: Tri-Clamp sanitary piping systems

Specifications

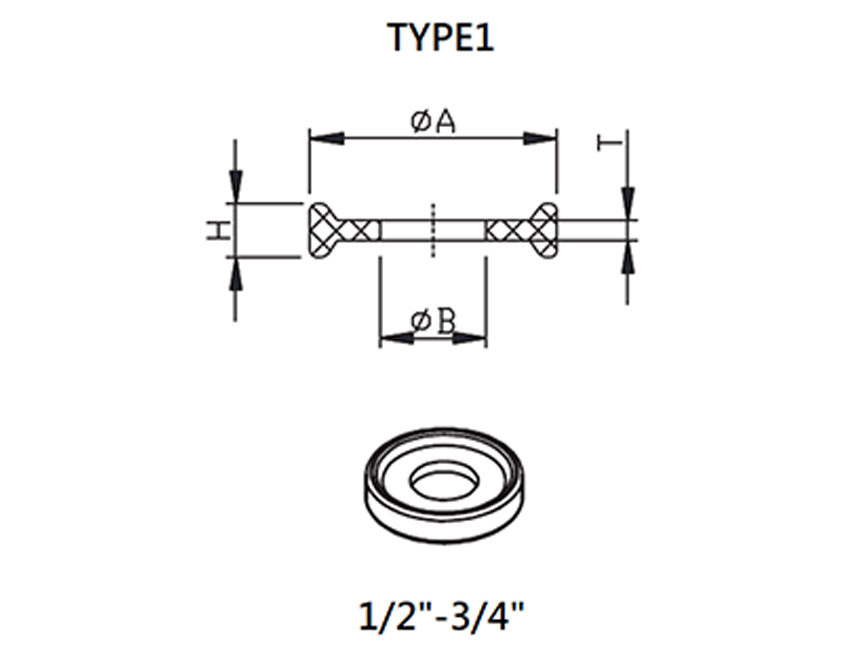

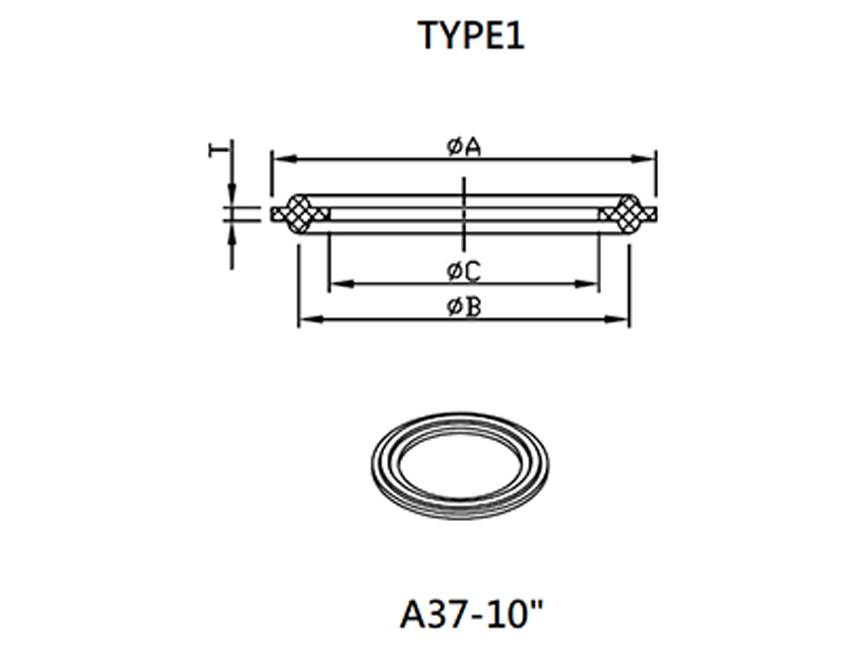

TYPE1

UNIT: mm

SIZE ØA ØB T H
1/2" 21.85 9.4 1.8 4.8
3/4" 21.85 15.7 1.8 4.8
SIZE ØA ØB ØC T
A37(PTFE) 34 27.5 18.1 1.7
1" 50.5 43.5 22.8 1.7
1.2" 50.5 43.5 28.5 1.7
1.5" 50.5 43.5 35.5 1.7
2" 64 56.5 48.2 1.7
2.5" 77.5 70.5 60.5 1.7
3" 91 83.5 73.2 1.7
DN80 106 97 85.4 1.7
4" 119 110 97.8 1.7
DN100 130 122 110.8 1.7
6" 166.8 156.4 147.6 1.7
8" 217.7 207 198.4 1.7
DN200 234.5 225 213.6 1.7
10" 268 258 248.5 1.7

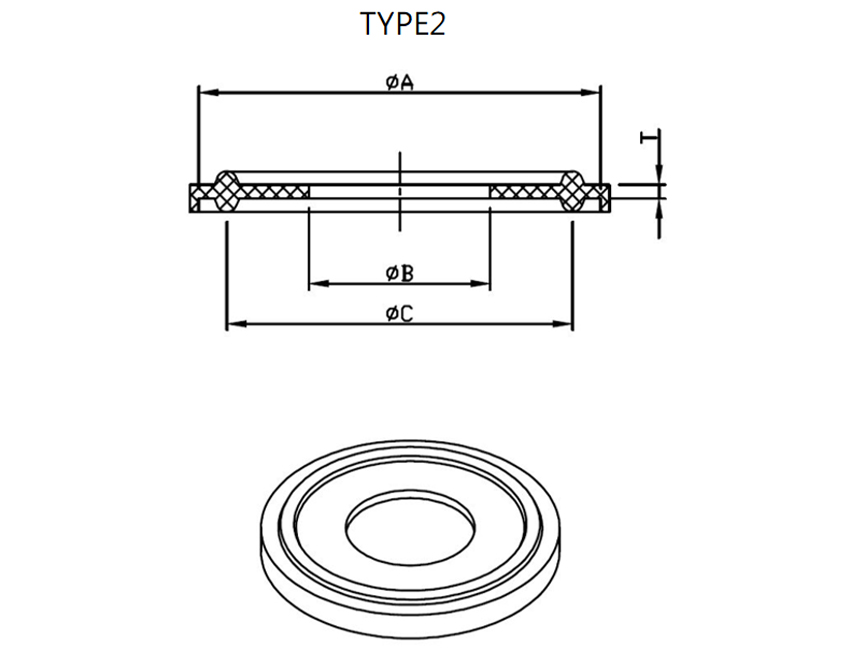

TYPE2

UNIT: mm

SIZE ØA ØB ØC T
1" 50.5 22.8 43.5 1.7
1.5" 50.5 35.5 43.5 1.7
2" 64 48.2 56.5 1.7
2.5" 77.5 60.5 70.5 1.7
3" 91 73.2 83.5 1.7
DN80 106 85.4 97 1.7
4" 119 97.8 110 1.7
5" 146.7 125 134.4 1.7
DN125 155 135.2 146 1.7
6" 166.8 147.6 156.4 1.7
DN150 183 163.2 174 1.7
8" 217.7 198.4 207 1.7
DN200 234.5 213.6 225 1.7
10" 268 248.5 258 1.7
12" 319 299.5 309 1.7
