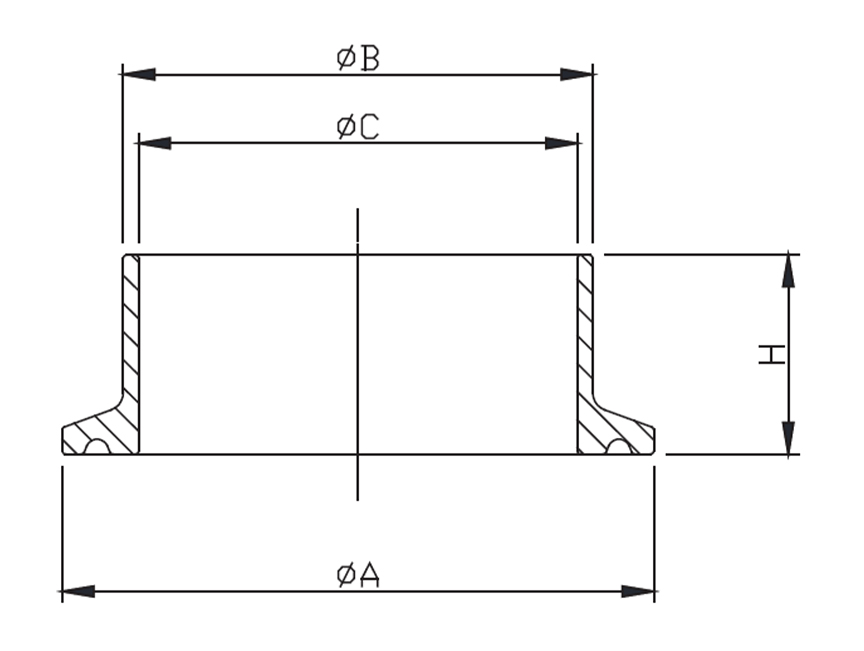

UNIT: mm
| SIZE | ØA | ØB | ØC | H |
| DN15 | 34 | 21.3 | 18.1 | 21.5 |
| DN20 | 50.5 | 26.9 | 23.6 | 21.5 |
| DN25 | 50.5 | 33.7 | 29.7 | 21.5 |
| DN32 | 64 | 42.4 | 38.4 | 21.5 |
| DN40 | 64 | 48.3 | 44.3 | 21.5 |
| DN50 | 77.5 | 60.3 | 56.3 | 21.5 |
| DN65 | 91 | 76.1 | 72.1 | 21.5 |
| DN80 | 106 | 88.9 | 84.9 | 21.5 |
| DN100 | 130 | 114.3 | 110.3 | 28.6 |
| DN125 | 155 | 139.7 | 134.7 | 28.6 |
| DN150 | 183 | 168.3 | 162.7 | 28.6 |
| DN200 | 233.5 | 219.1 | 213.1 | 28.6 |
