Tri-Clamp BSPT Female Adapter

Product Model: 22MPT

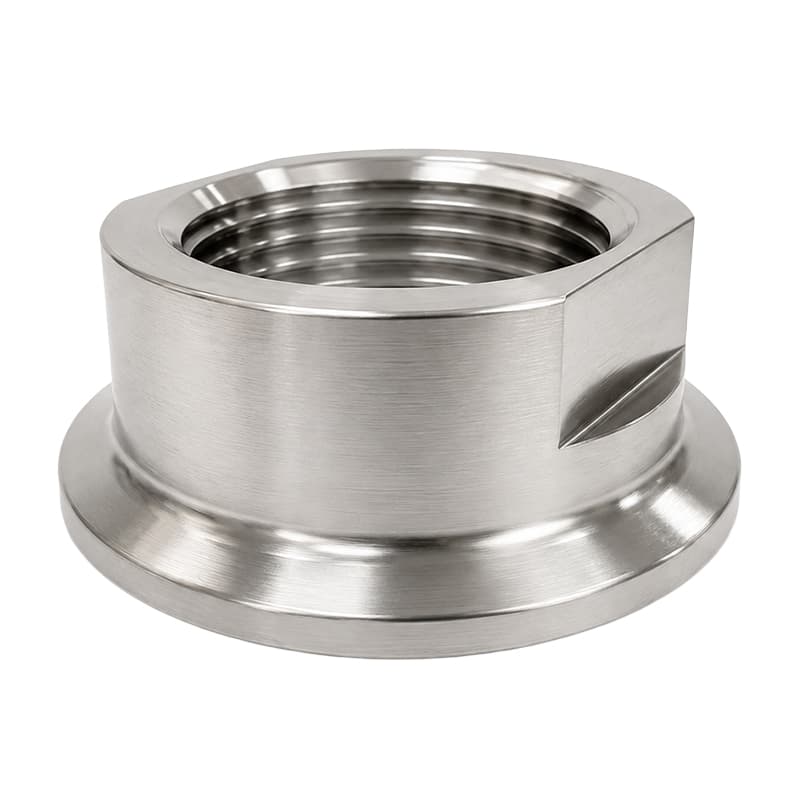

The 22MPT Tri-Clamp BSPT Female Adapter connects sanitary Tri-Clamp tubing systems to threaded tubesor equipment. It has a Tri-Clamp connection on one end and a BSPT female thread on the other end, making it easy to connect sanitary and threaded tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 3/4" × 1/4"–2" × 1"

Material: SUS304, SUS316L

Connection: Tri-Clamp × BSPT Female Thread

Thread Standard: BSPT

Specifications

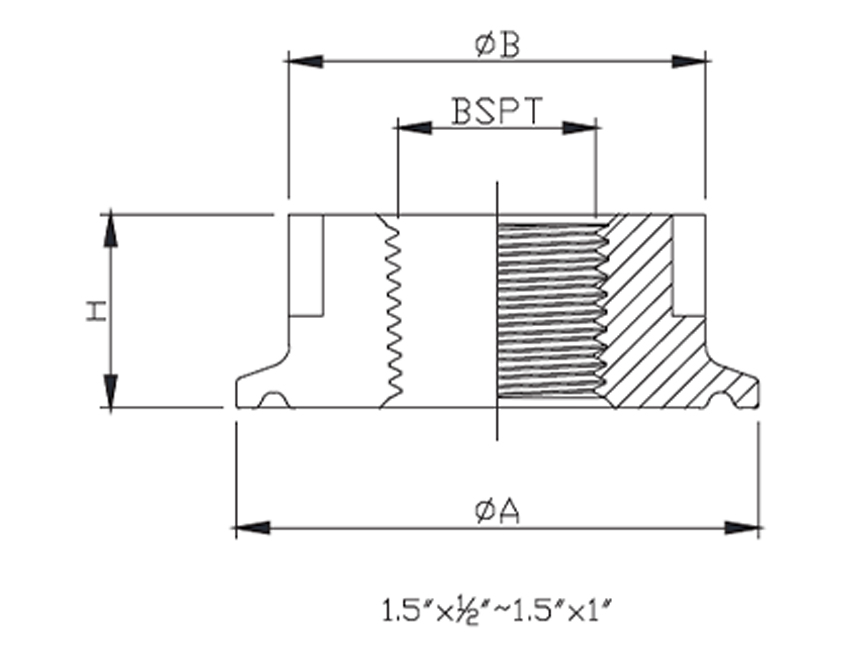

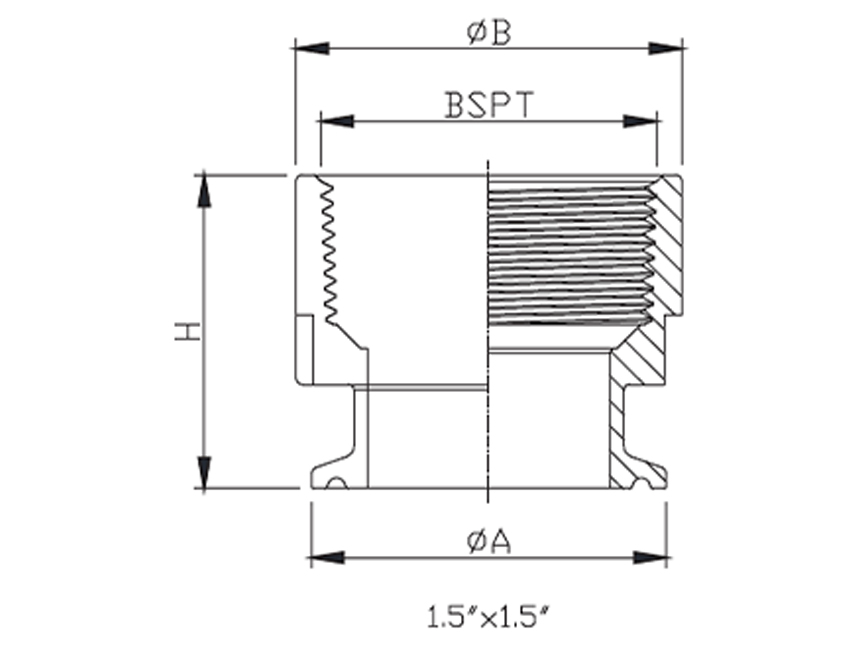

UNIT: mm

SIZE ØA ØB H BSPT
3/4"X1/4" 25.2 31 33 1/4" x19T
3/4"X1/2" 25.2 31 33 1/2" x 14T
3/4"X3/4" 25.2 31 33 3/4" x14T
1.5"x 1/4" 50.5 40.6 19.2 1/4" x19T
1.5"x 3/8" 50.5 40.6 19.2 3/8" x 19T
1.5"x 1/2" 50.5 40.6 19.2 1/2" x 14T
1.5"x 3/4" 50.5 40.6 19.2 3/4" x 14T
1.5" x 1" 50.5 42 19.2 1" x 11T
1.5" x 1.25" 50.5 50.8 40 1.25" x 11T
1.5" x 1.5" 50.5 55 45 1.5"x 11T
2" x 1/2" 64 50.8 19 1/2"
2" x 3/4" 64 50.8 19 3/4"
2" x 1" 64 50.8 19 1"
