CIP-14 (AUS)Weld Liner

Weld female adapter for tube welding connections, providing a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–6"

Material: SS304, SS316L

Specifications

UNIT: mm

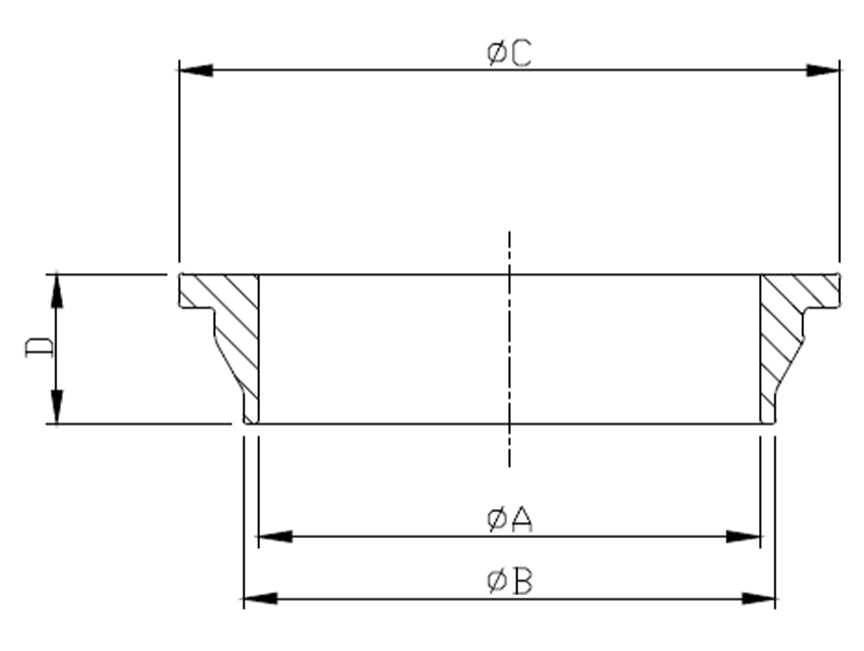

SIZE ØA ØB ØC D
1" 22.2 25.4 41.3 19
1.5" 34.9 38.1 54 19
2" 47.6 50.8 66.7 19
2.5" 60.3 63.5 79.4 19
3" 73 76.2 92.1 19
4" 98.4 101.6 117.5 19
5" 123.8 127 142.9 25
6" 149.2 152.4 168.3 27
