RJT-13R Round Slotted Nut

Grooved nut with a round groove design for easy hand installation and removal. Suitable for sanitary BSM / RJT piping connections.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–6"

Material: SS304

Specifications

UNIT: mm

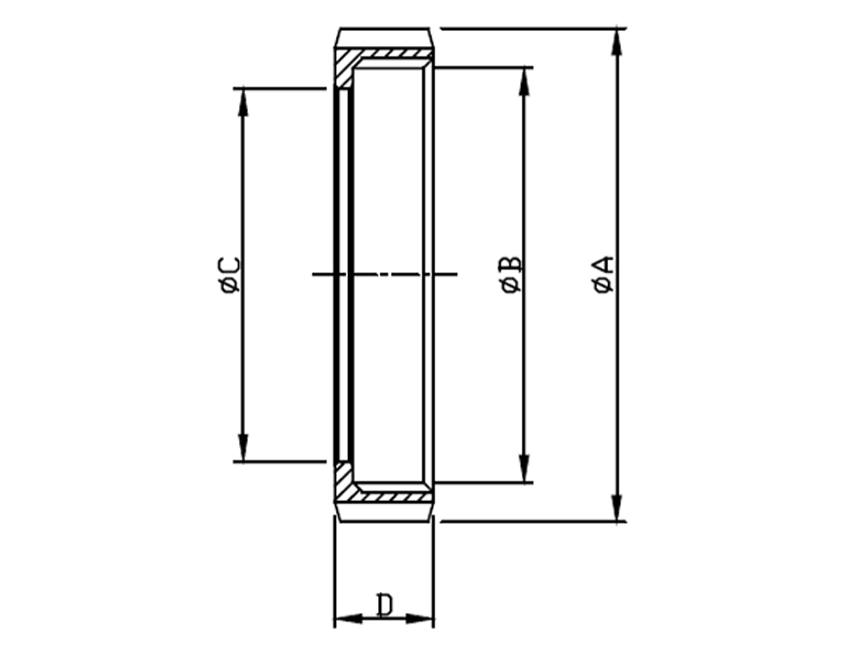

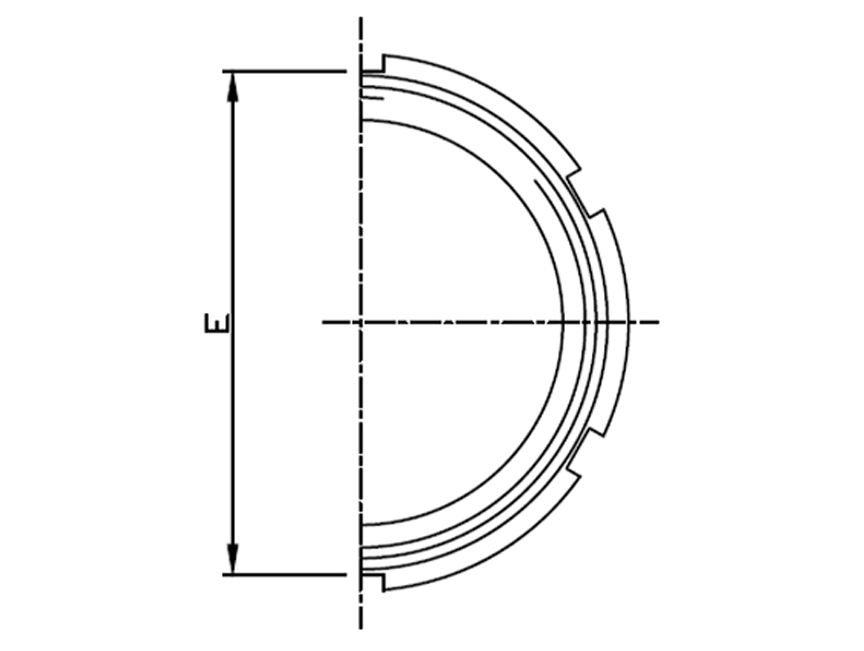

SIZE ØA ØB ØC D E SLOT
1" 58.5 42.6x8T 33.3 22.2 51.2 4
1.5" 74 55.3x8T 46 22.2 66.6 6
2" 85.5 68.3x6T 58.7 22.2 78 6
2.5" 98.5 80.9x6T 71.4 22.2 91.7 6
3" 111.6 93.6x6T 84.1 22.2 104.4 6
4" 139 119.1x6T 109.5 22.2 131.6 6
5" 172.5 144.1X6T 136 24 162.2 8
6" 197 169.7x6T 162.3 23.5 189.1 8
