RJT-14 (AUS)Weld Liner

Weld female adapter for pipe welding connections, providing a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–6"

Material: SS304, SS316L

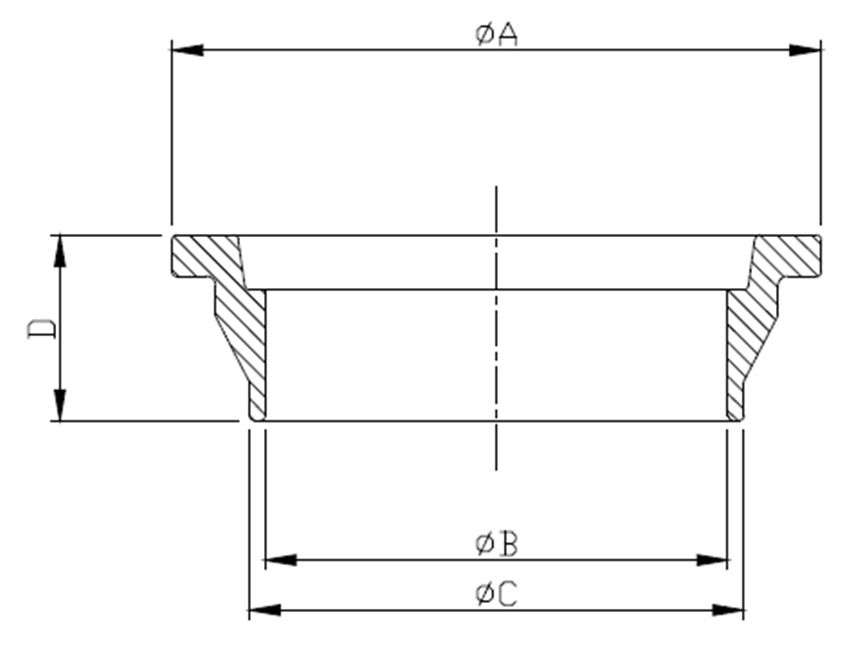

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 41.3 22.2 25.4 19
1.5" 54 34.9 38.1 19
2" 66.7 47.6 50.8 19
2.5" 79.4 60.3 63.5 19
3" 92.1 73 76.2 19
4" 117.5 98.4 101.6 19
5" 142.9 123.8 127 25
6" 168.3 149.2 152.4 27
