CIP-15 (AUS)Weld Liner

Weld male adapter for tube welding connections. Used with a female adapter to form a complete sanitary union connection.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–6"

Material: SS304, SS316L

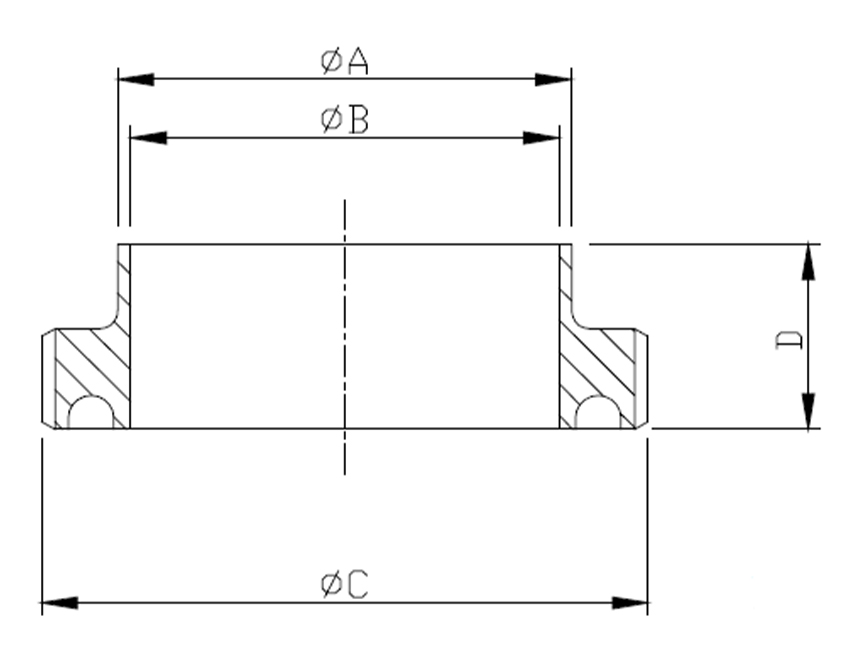

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 25.4 22.2 45.7x8T 22
1.5" 38.1 34.9 58.4x8T 22
2" 50.8 47.6 72.7x6T 22
2.5" 63.5 60.3 85.4x6T 22
3" 76.2 73 98.1x6T 22
4" 101.6 98.4 123.5x6T 22
5" 127 123.8 148.9x6T 22
6" 152.4 149.2 174.3x6T 22
