RJT-15(AUS) Weld Male

Weld male adapter for tube welding connections. Used with a female adapter to form a complete sanitary union connection.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–6"

Material: SS304, SS316L

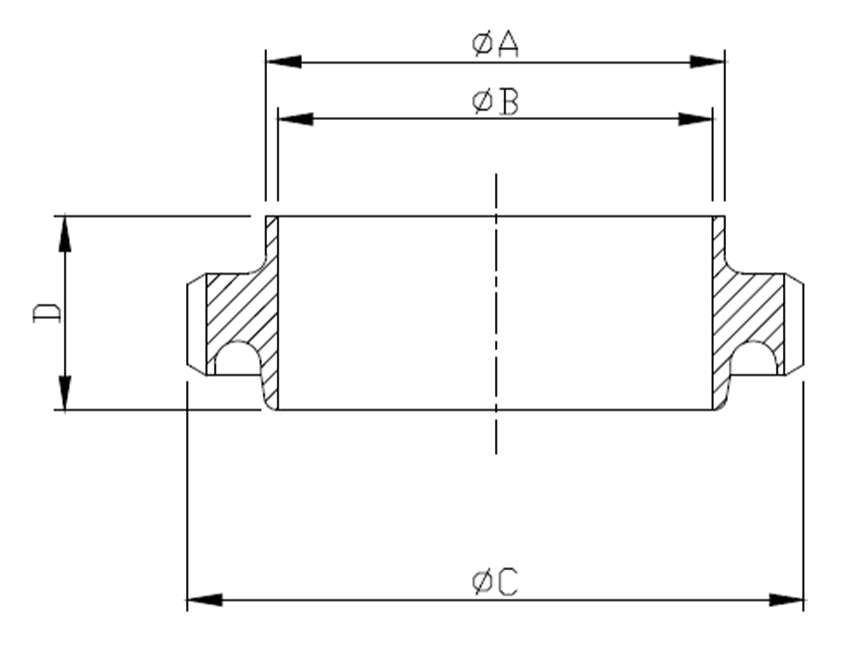

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 25.4 22.2 45.7x8T 26.8
1.5" 38.1 34.9 58.4x8T 26.8
2" 50.8 47.6 72.7x6T 26.8
2.5" 63.5 60.3 85.4x6T 26.8
3" 76.2 73 98.1x6T 26.8
4" 101.6 98.4 123.5x6T 26.8
5" 127 123.8 148.9x6T 26.8
6" 152.4 149.2 174.3x6T 26.8
