RJT-14(NL)Weld Liner

Weld female adapter for tube welding connections, providing a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–6"

Material: SS304, SS316L

Specifications

UNIT: mm

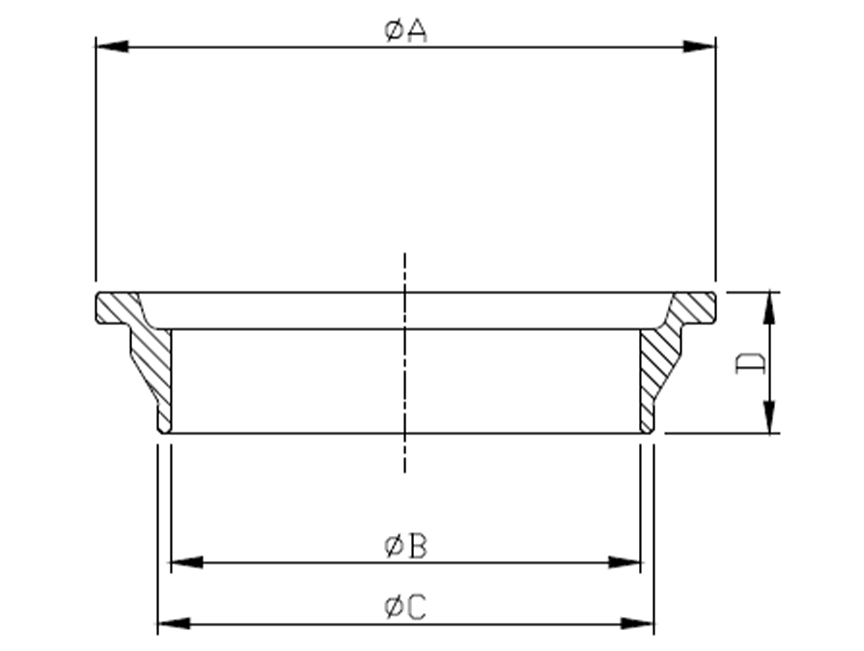

SIZE ØA ØB ØC D
1" 41.3 22.2 25.8 18
1.5" 54 34.9 38.5 18
2" 66.7 47.6 51.2 18
2.5" 79.4 60.3 63.9 18
3" 92.1 73 76.6 18
4" 117.5 97.6 102 18
5" 142.9 122.8 127 25
6" 168.3 148.2 152.7 23
