CIP-15 (NL)Weld Liner

Weld male adapter for tube welding connections. Used with a female adapter to form a complete sanitary union connection.

  1. Inquiry
  2. Back
  3. Prev
Details

Size: 1"–6"

Material: SS304, SS316L

Specifications

UNIT: mm

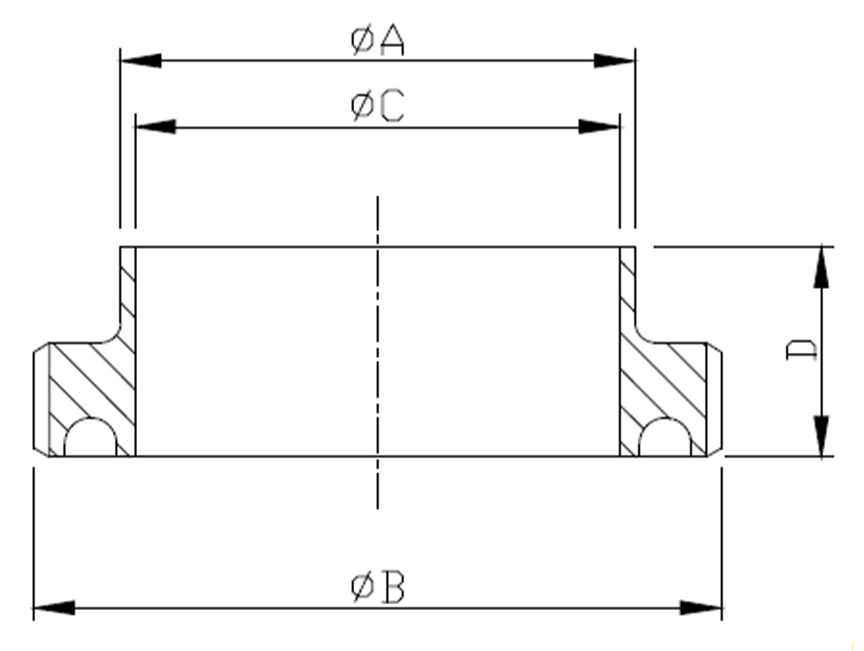

SIZE ØA ØB ØC D
1" 25.8 45.7x8T 22.2 22.2
1.5" 38.5 58.2x8T 34.9 22.2
2" 51.2 72.7x6T 47.6 22.2
2.5" 63.9 85.4x6T 60.3 22.2
3" 76.6 98.1x6T 73 22.2
4" 102 123.5x6T 97.6 22.2
5" 127 148.9x6T 122.8 22
6" 152.7 174.3x6T 148.2 19.2
