SMS-13R(BR) Round Slotted Nut

The hex nut is used to secure SMS union fittings. It is designed for use with welding male parts, welding liners, and sealing gaskets. The threaded connection provides easy installation and disassembly, making it convenient for routine maintenance and tubing system servicing.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304

Specifications

UNIT: mm

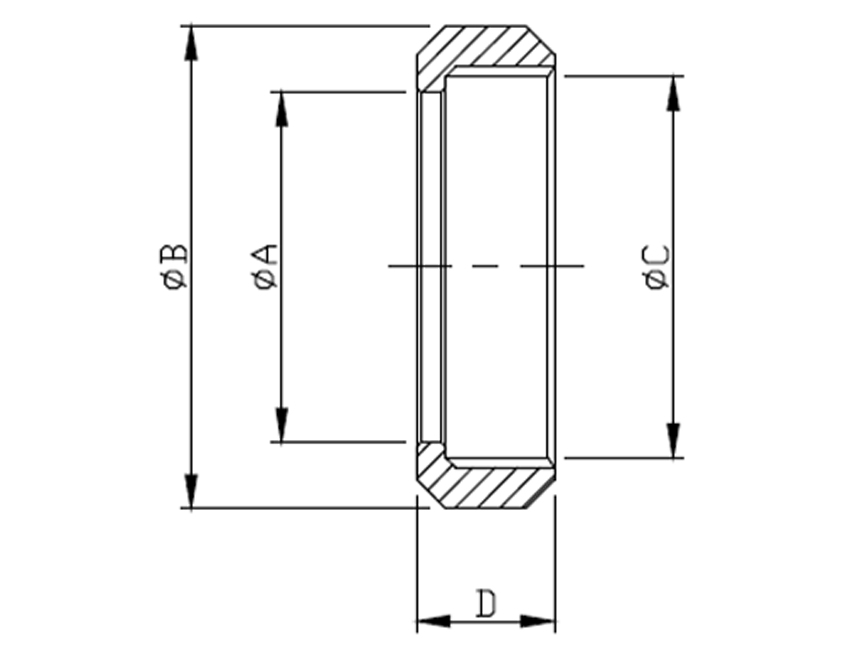

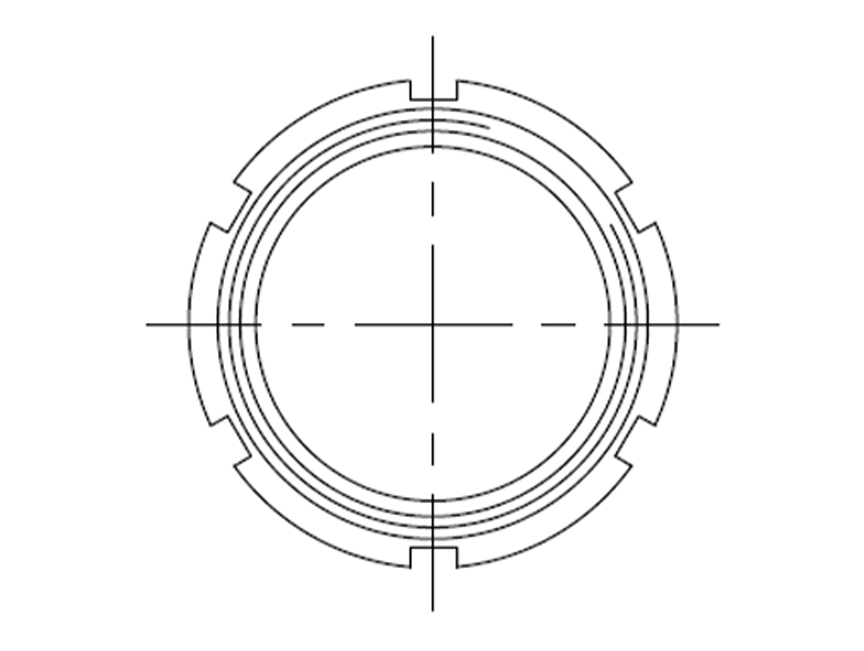

SIZE ØA ØB ØC D
1" 32.3 51 RD40x1/6 19
1.2" 40.3 60 RD48x1/6 22
1.5" 48.3 74 RD60x1/6 23
2" 61 84 RD70x1/6 24
2.5" 74 100 RD85x1/6 28
3" 87 114 RD98x1/6 30
4" 117 153.7 RD132x1/6 34
