SMS-14(BR) Welding Liner

The weldable liner is designed to be used with a welding male part, nut, and sealing gasket to form a complete tubing connection. It provides a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304, SS316L

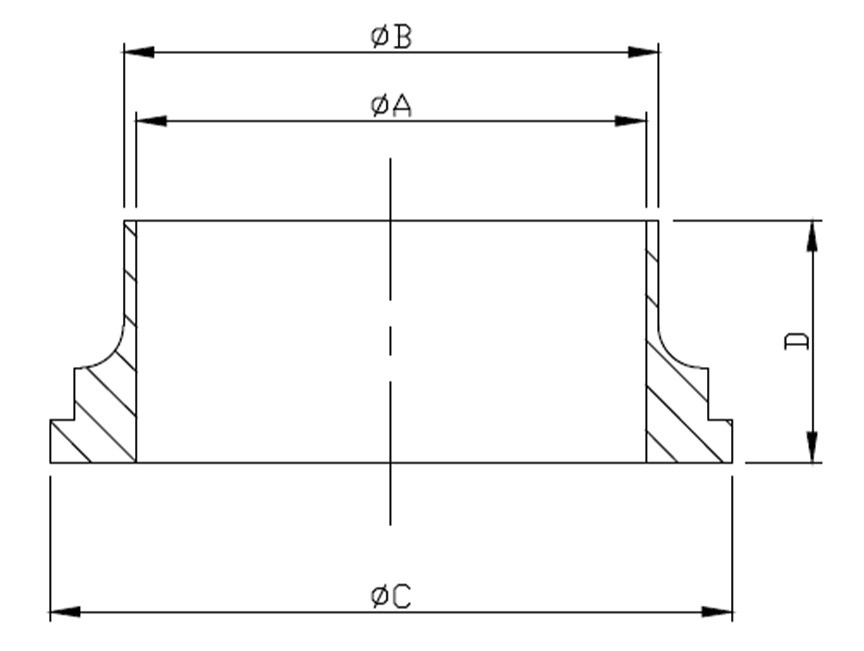

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 22.4 25.4 35.5 15.5
1.5" 35.1 38.1 55 16
2" 47.8 50.8 65 17
2.5" 59.5 63.5 80 17
3" 72.2 76.2 93 17
4" 97.6 101.6 126.7 19
