SMS-15(FR) Welding Male Part

The threaded male part is designed to be used with a welding liner, round nut, and sealing gasket to provide a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304, SS316L

Specifications

UNIT: mm

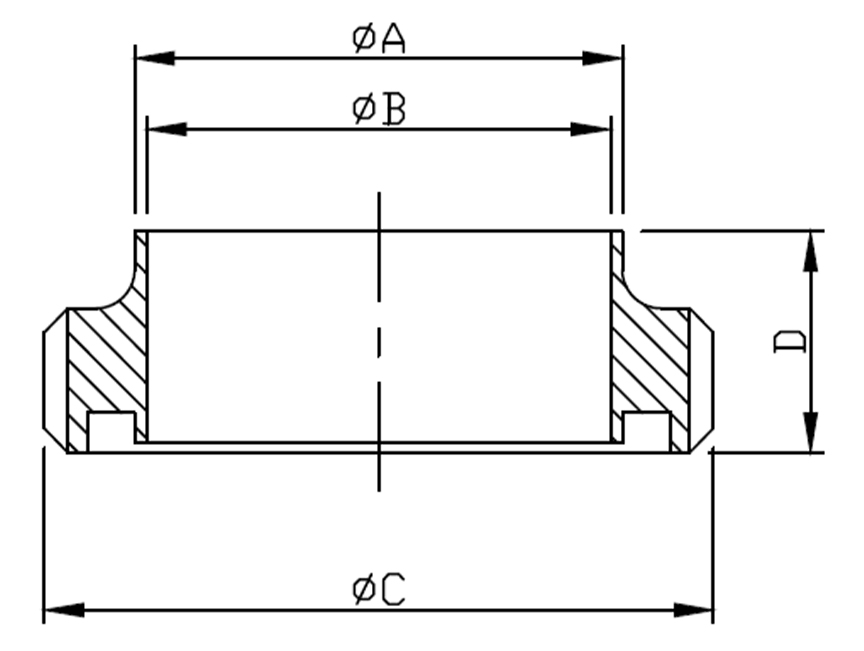

SIZE ØA ØB ØC D
1" 25 22.5 RD40x1/6 19
1.2" 32 29.3 RD48x1/6 20
1.5" 38 35.5 RD60x1/6 23
2" 51 48.5 RD70x1/6 23
2.5" 63.5 60.5 RD85x1/6 27
3" 76.1 72.9 RD98x1/6 27
4" 101.6 97.6 RD125x1/4 30
104 104 100 RD125x1/4 30
