SMS-14(DM) Welding Liner

The weldable liner is designed to be used with a welding male part, nut, and sealing gasket to form a complete tubing connection. It provides a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304, SS316L

Specifications

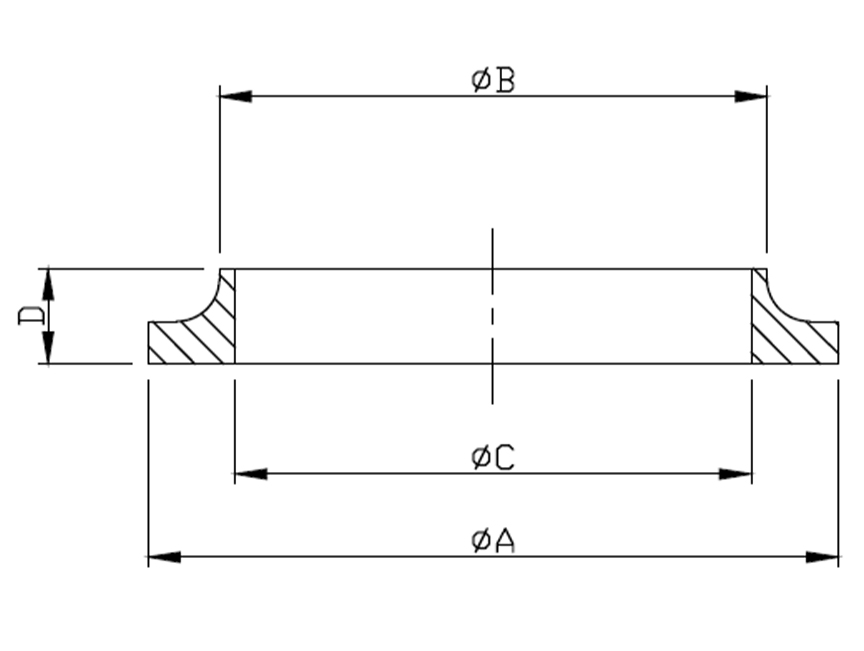

UNIT: mm

SIZE ØA ØB ØC D
1" 35.5 25.6 22.6 8
1.5" 55 38.6 35.6 9
2" 65 51.6 48.6 9
2.5" 80 64 60.3 9
3" 93 76.6 72.9 10
4" 126.8 102.4 97.6 12
