SMS-15(DM) Welding Male Part

The threaded male part is designed to be used with a welding liner, round nut, and sealing gasket to provide a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304, SS316L

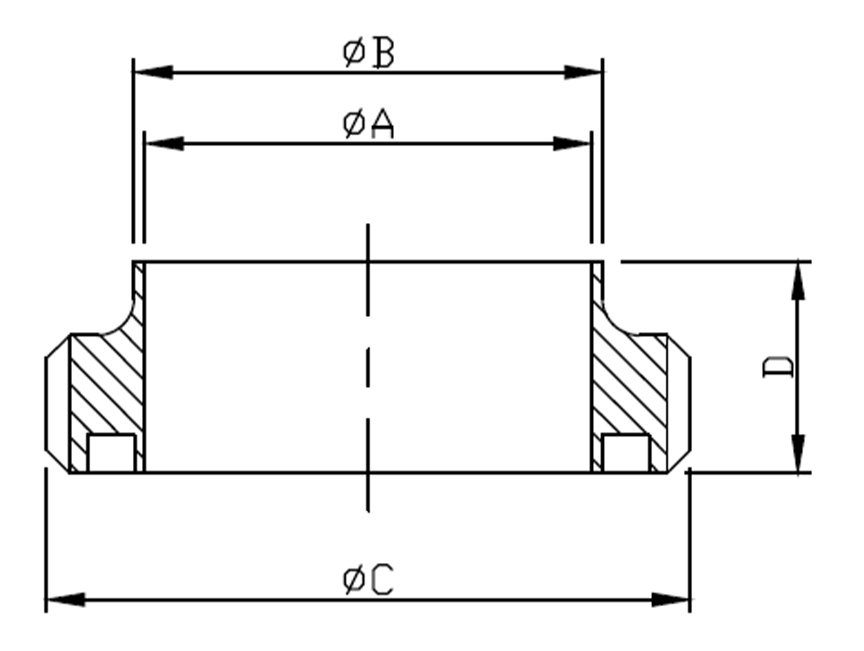

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 22.6 25.6 RD40x1/6 15
1.5" 35.6 38.6 RD60x1/6 20
2" 48.6 51.6 RD70x1/6 20
2.5" 60.3 64 RD85x1/6 24
3" 72.9 76.6 RD98x1/6 24
4" 97.6 102.4 RD132x1/6 35
