SMS-15(BR) Welding Male Part

The threaded male part is designed to be used with a welding liner, round nut, and sealing gasket to provide a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304, SS316L

Specifications

UNIT: mm

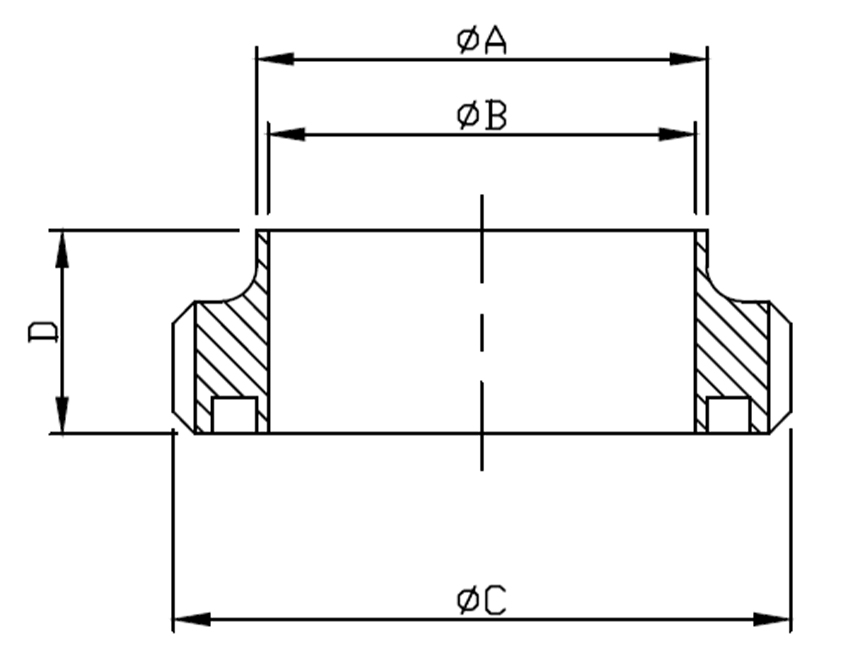

SIZE ØA ØB ØC D
1" 25.4 22.4 RD40x1/6 19
1.5" 38.1 35.1 RD60x1/6 23
2" 50.8 47.8 RD70x1/6 23
2.5" 63.5 59.5 RD85x1/6 27
3" 76.2 72.2 RD98x1/6 27
4" 101.6 97.6 RD132x1/6 35
