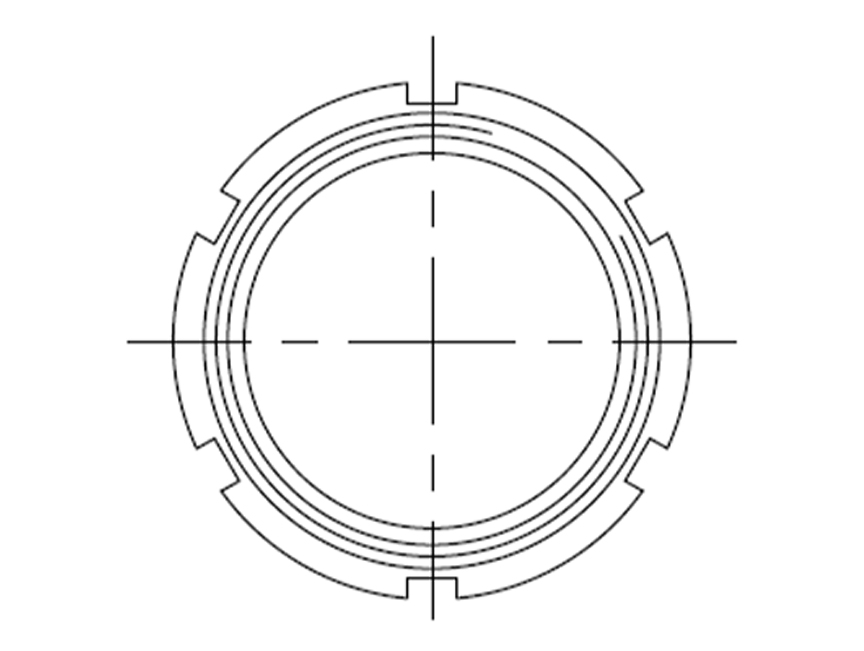

SMS-13R(DM) Round Slotted Nut

The hex nut is used to secure SMS union fittings. It is designed for use with welding male parts, welding liners, and sealing gaskets. The threaded connection provides easy installation and disassembly, making it convenient for routine maintenance and tubing system servicing.

  1. Inquiry
  2. Back
  3. Next
Details

Size: 1"–4"

Material: SS304

Specifications

UNIT: mm

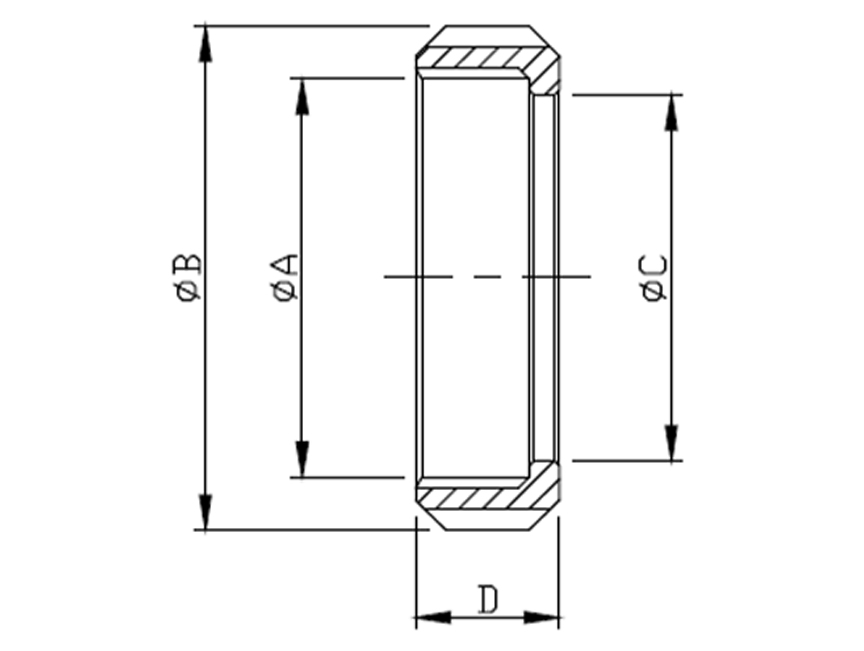

SIZE ØA ØB ØC D
1" RD40x1/6 51 32.3 20
1.2" RD48x1/6 60 40 22
1.5" RD60x1/6 74 48.5 25
2" RD70x1/6 84 61 26
2.5" RD85x1/6 100 74 30
3" RD98x1/6 114 87 32
4" RD132x1/6 154 117 45
