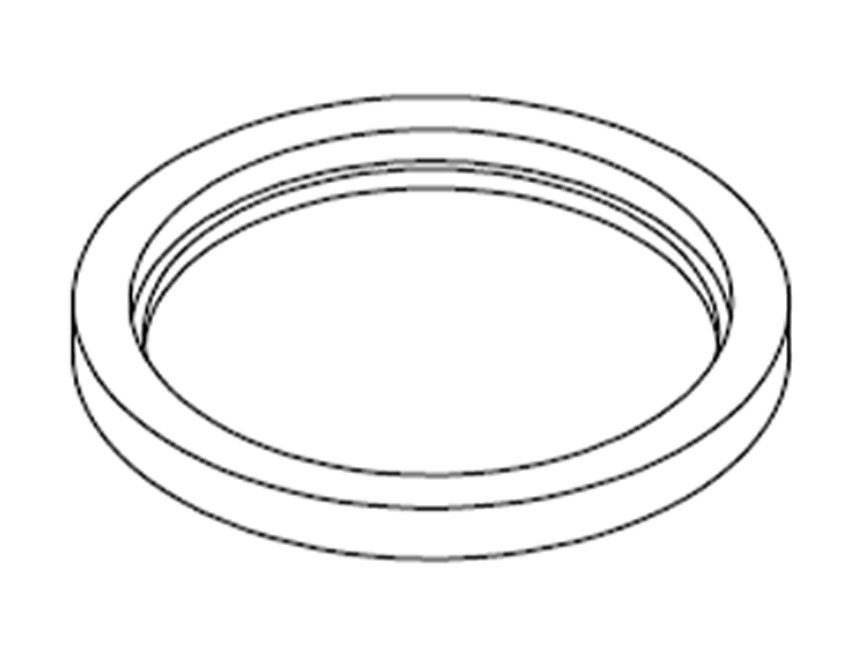

SMS(DM) Union Gasket

The SMS gasket is installed at the union connection to provide a reliable seal between SMS fittings. Available in various sealing materials, it can be selected according to the requirements of food, beverage, and sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: EPDM, Silicone, Buna-N, Viton

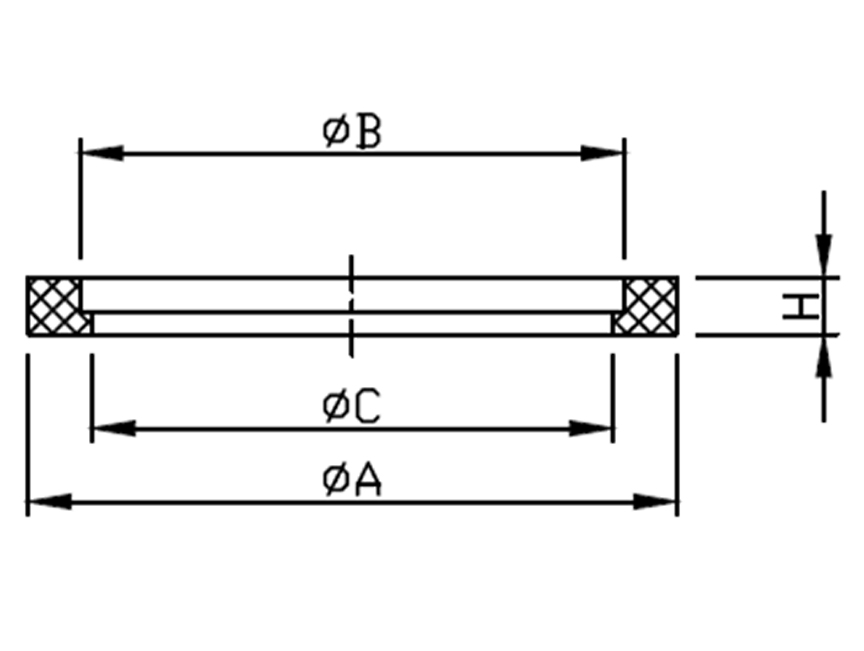

Specifications

UNIT: mm

SIZE ØA ØB ØC H
1" 31.8 25.1 22.8 5.3
1.5" 47.8 38.1 35.8 5.3
2" 60.8 51.1 48.8 5.3
2.5" 73.3 63.6 61 5.3
3" 85.8 76.1 73.4 5.3
4" 113.8 101.6 98.2 5.3
