SMS-14(FR) Welding Liner

The weldable liner is designed to be used with a welding male part, nut, and sealing gasket to form a complete tubing connection. It provides a secure and reliable connection for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304, SS316L

Specifications

UNIT: mm

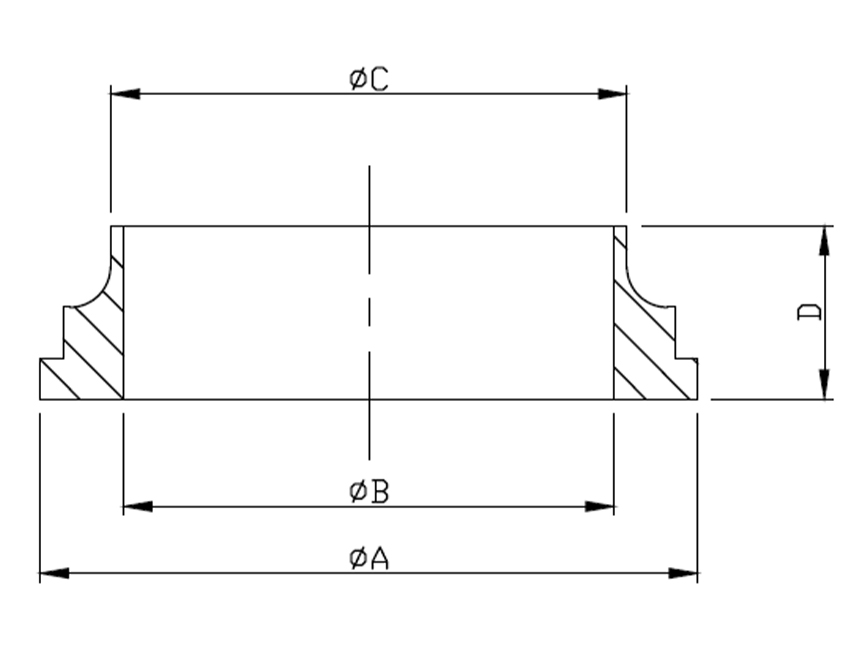

SIZE ØA ØB ØC D
1" 35.5 22.5 25 15.5
1.2" 43.3 29.3 32 16
1.5" 55 35.5 38 16
2" 65 48.5 51 17
2.5" 80 60.5 63.5 17
3" 93 72.9 76.1 19
4" 118 97.6 101.6 19
104 118 100 104 19
