DIN-13AH Blank Round Slotted Nut

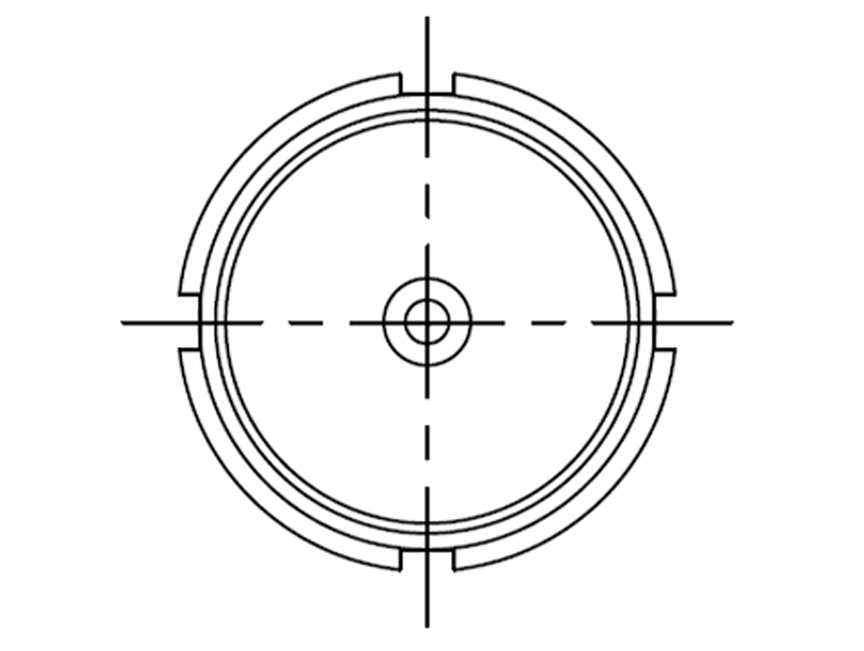

Used in combination with the welding male (DIN-15)and seal, making pipeline disassembly, cleaning, and maintenance more convenient. The round design features multiple grooves (4 or 6) around the outer edge, allowing a spanner to be used for tightening or loosening.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: DN10–DN150

Material: SS304

Specifications

UNIT: mm

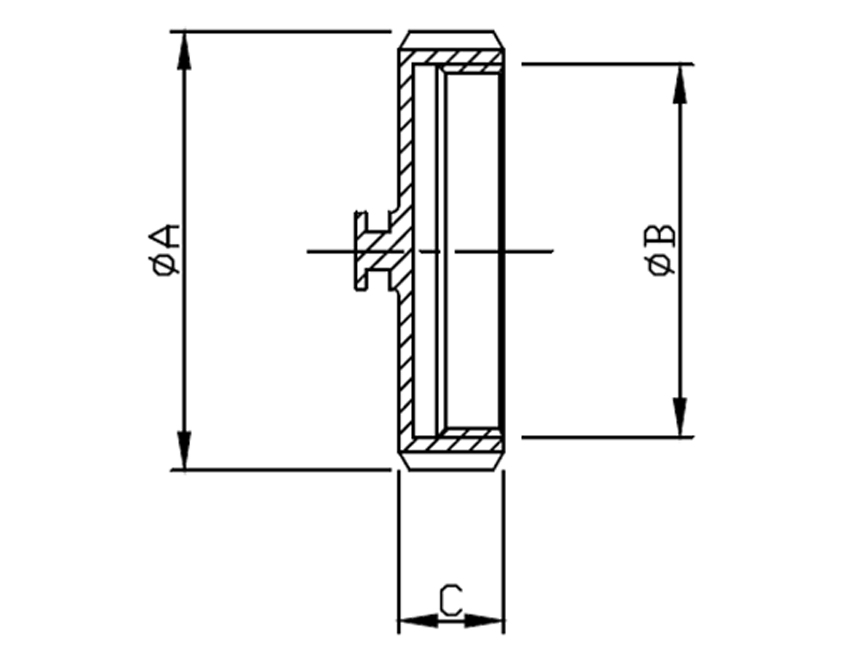

SIZE ØA ØB C SLOT
DN10 38 RD28x1/8 18 4
DN15 44 RD34x1/8 18 4
DN20 54 RD44x1/6 21 4
DN25 63 RD52x1/6 21 4
DN32 70 RD58x1/6 21 4
DN40 78 RD65x1/6 21 4
DN50 92 RD78x1/6 22 4
DN65 112 RD95x1/6 25 4 6
DN80 127 RD110x1/4 30 4 6
DN100 148 RD130x1/4 31 4 6
DN125 178 RD160x1/4 35 4 6
DN150 210 RD190x1/4 40 4 6
