DIN-15-ISO Welding Male Part

The DIN welding male part makes up one side of a DIN union. During installation, the round nut presses the welding male and welding liner together, compressing the gasket to form a reliable and tight seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: DN10–DN100

Material: SS304, SS316L

Specifications

UNIT: mm

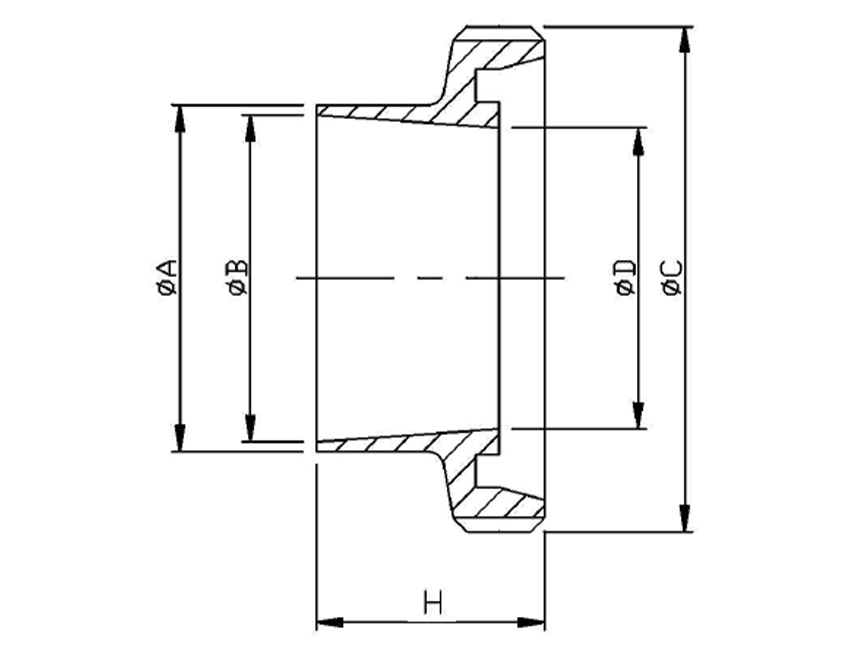

SIZE ØA ØB ØC ØD H
DN10 18 14 27.5-RD28x1/8 10 17
DN15 21.3 18.1 33.5-RD34x1/8 16 17
DN20 26.9 23.7 43.5-RD44x1/6 20 18
DN25 33.7 29.7 51.5-RD52x1/6 26 22
DN32 42.4 38.4 57.5-RD58x1/6 32 25
DN40 48.3 44.3 64.5-RD65x1/6 38 26
DN50 60.3 56.3 77.5-RD78x1/6 50 28
DN65 76.1 71.6 94.5-RD95x1/6 66 32
DN80 88.9 84.3 109.3-RD110x1/4 81 37
DN100 114.3 109.1 129.3-RD130x1/4 100 44
