DIN-15 Welding Male Part

The DIN welding male part makes up one side of a DIN union. During installation, the round nut presses the welding male and welding liner together, compressing the gasket to form a reliable and tight seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: DN10–DN150

Material: SS304, SS316L

Specifications

UNIT: mm

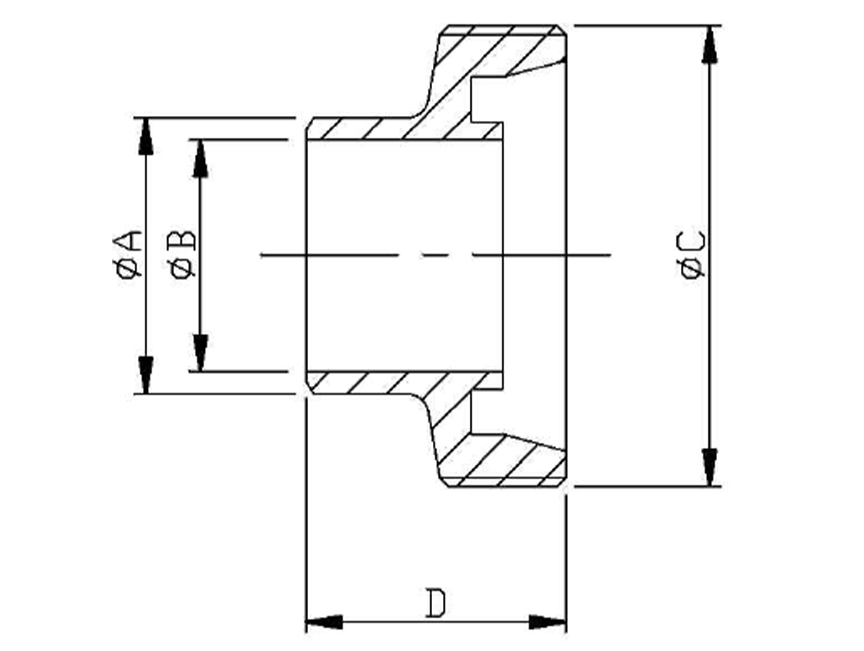

SIZE ØA ØB ØC D
DN10 15 10 RD28x1/8 21
DN15 21 16 RD34x1/8 21
DN20 25 20 RD44x1/6 24
DN25 31 26 RD52x1/6 29
DN32 37 32 RD58x1/6 32
DN40 43 38 RD65x1/6 33
DN50 55 50 RD78x1/6 35
DN65 72 66 RD95x1/6 40
DN80 87 81 RD110x1/4 45
DN100 106 100 RD130x1/4 54
DN125 132 125 RD160x1/4 46
DN150 157 150 RD190x1/4 50
