DIN-14-EB Welding Liner

DIN welding liners make up one side of a DIN union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"-6"

Material: SS304, SS316L

Specifications

UNIT: mm

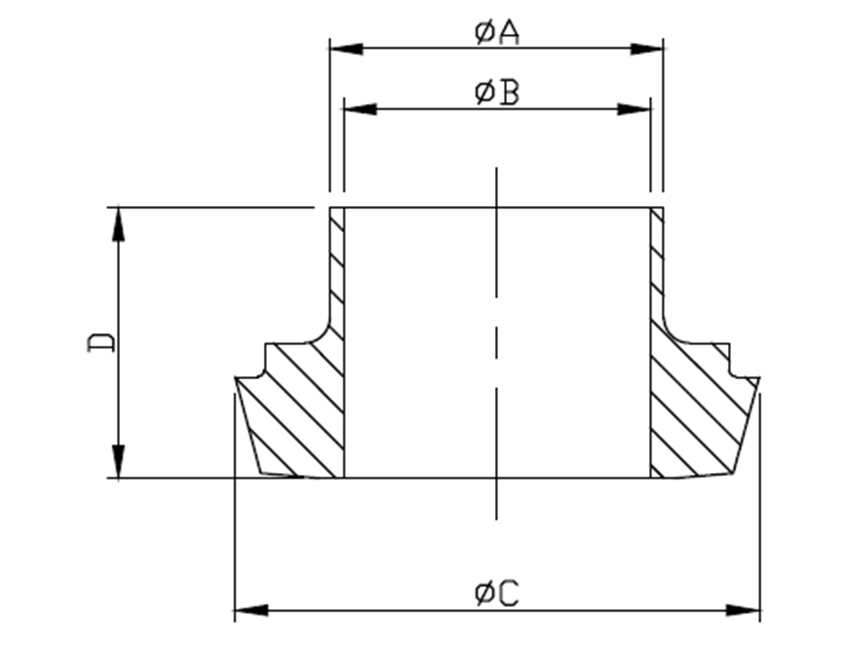

SIZE ØA ØB ØC D
1" 25.4 22.2 44 22
1.2" 31.8 28.5 50 25
1.5" 38.1 34.9 56 26
2" 50.8 47.6 68 28
2.5" 63.5 60.3 86 32
3" 76.2 73 100 37
4" 101.6 97.6 121 44
5" 127 123 150 34
6" 152.4 148.4 176 37
