DIN-16A(14AH) Blank Liner

DIN blanl liners make up one side of a DIN union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: DN10–DN150

Material: SS304, SS316L

Specifications

UNIT: mm

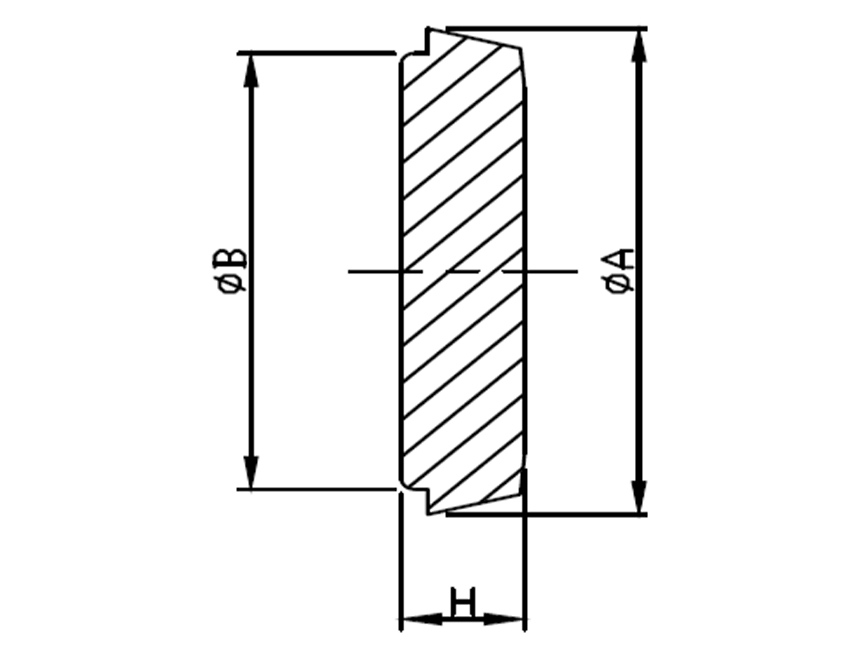

SIZE ØA ØB H
DN10 22 18 9
DN15 28 24 9
DN20 36 30 11
DN25 44 35 13
DN32 50 41 13
DN40 56 48 13
DN50 68 61 14
DN65 86 79 16
DN80 100 93 16
DN100 120 114 20
DN125 149 137 22
DN150 175 163 24
