DIN-14 Welding Liner

DIN welding liners make up one side of a DIN union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: DN10–DN150

Material: SS304, SS316L

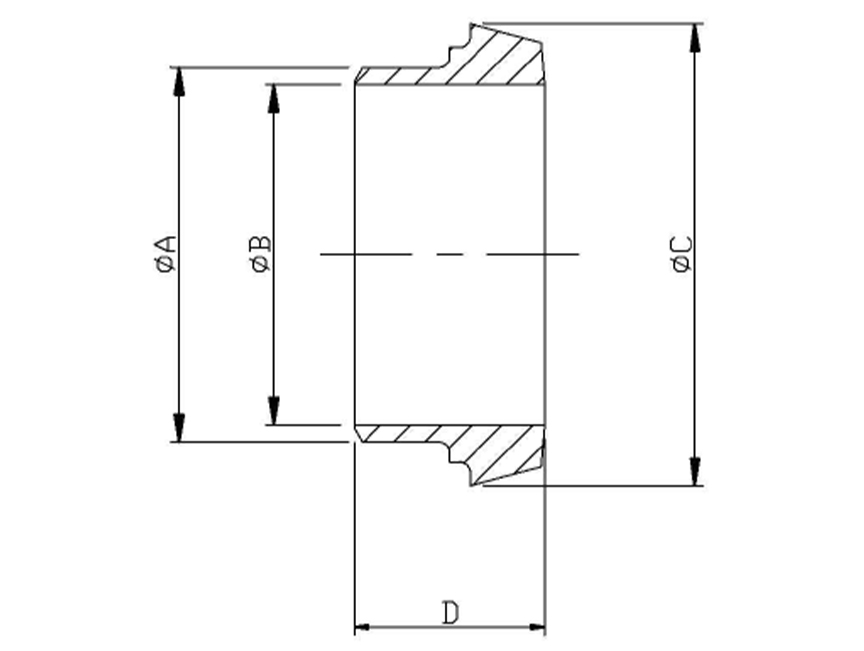

Specifications

UNIT: mm

SIZE ØA ØB ØC D
DN10 15 10 22 17
DN15 21 16 28 17
DN20 25 20 36 18
DN25 31 26 44 22
DN32 37 32 50 25
DN40 43 38 56 26
DN50 55 50 68 28
DN65 72 66 86 32
DN80 87 81 100 37
DN100 106 100 120 44
DN125 132 125 149 34
DN150 157 150 175 37
