DIN-14-ISO Welding Liner

DIN welding liners make up one side of a DIN union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: DN10–DN100

Material: SS304, SS316L

Specifications

UNIT: mm

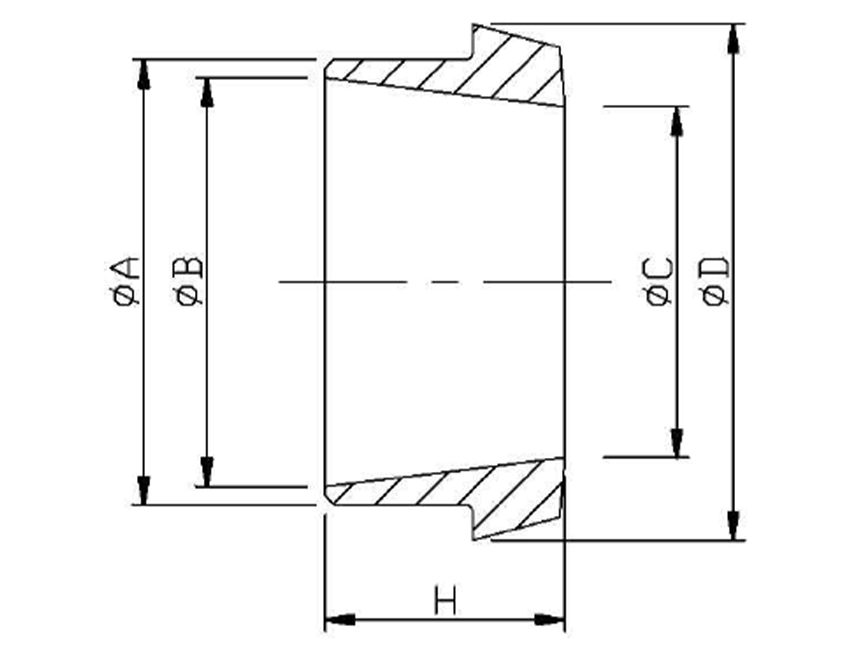

SIZE ØA ØB ØC ØD H
DN10 18 14 10 22.5 17
DN15 21.3 18.1 16 28.5 17
DN20 26.9 23.7 20 36.5 18
DN25 33.7 29.7 26 44 22
DN32 42.4 38.4 32 50 25
DN40 48.3 44.3 38 56 26
DN50 60.3 56.3 50 68.5 28
DN65 76.1 71.6 66 86 32
DN80 88.9 84.3 81 100 37
DN100 114.3 109.1 100 121 44
