DIN-14(NB) Welding Liner

DIN welding liners make up one side of a DIN union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: DN10-DN150

Material: SS304, SS316L

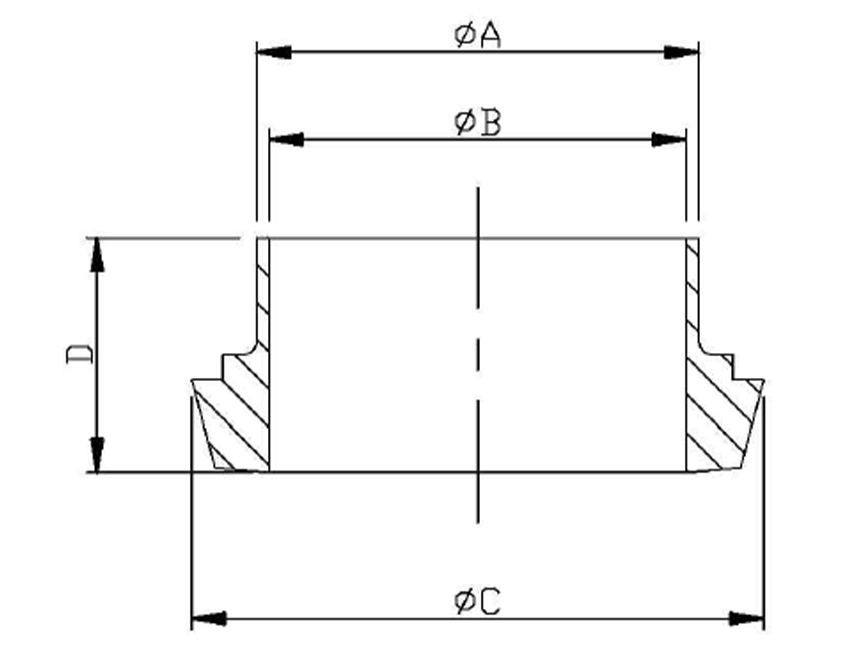

Specifications

UNIT: mm

SIZE ØA ØB ØC D
DN10 13 10 22 17
DN15 19 16 28 17
DN20 23 20 36 18
DN25 29 26 44 22
DN32 35 32 50 25
DN40 41 38 56 26
DN50 53 50 68.5 28
DN65 70 66 86 32
DN80 85 81 100 37
DN100 104 100 121 44
DN125 129 125 150 34
DN150 154 150 176 37
