DIN-15(EB) Welding Male Part

The DIN welding male part makes up one side of a DIN union. During installation, the round nut presses the welding male and welding liner together, compressing the gasket to form a reliable and tight seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"-6"

Material: SS304, SS316L

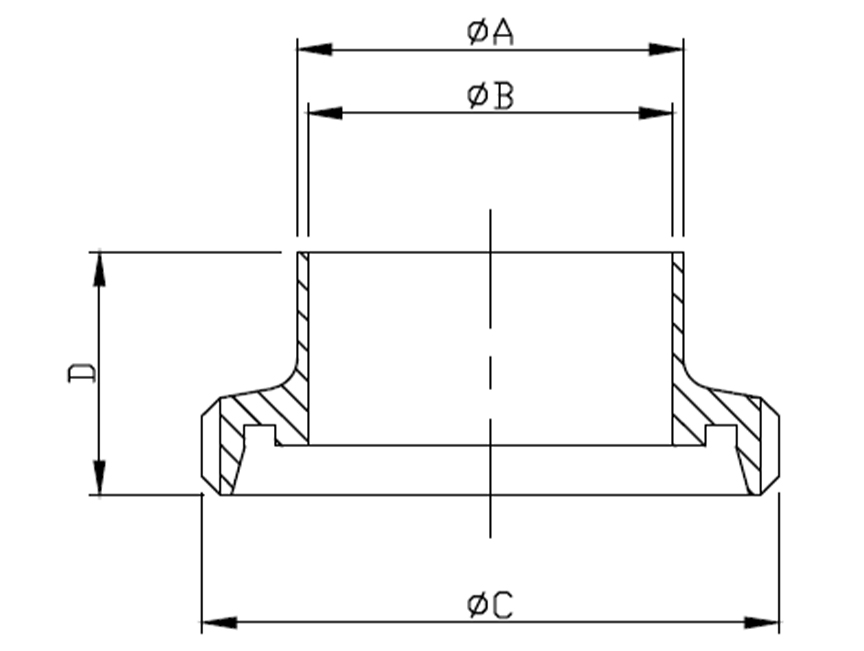

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 25.4 22.2 RD52x1/6 29
1.2" 31.8 28.5 RD58x1/6 32
1.5" 38.1 34.9 RD65x1/6 33
2" 50.8 47.6 RD78x1/6 35
2.5" 63.5 60.3 RD95x1/6 40
3" 76.2 73 RD110x1/4 45
4" 101.6 97.6 RD130x1/4 54
5" 127 123 RD160x1/4 46
6" 152.4 148.4 RD190x1/4 50
