45° Long Weld Elbow

Product Model: 3A-L2KS

The long-radius design minimizes flow resistance and pressure loss, making it ideal for high-flow and hygienic processing systems.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Connection: Butt-Weld

Angle: 45°

Size Range: 1/2"–6"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: 3-A Sanitary Standard

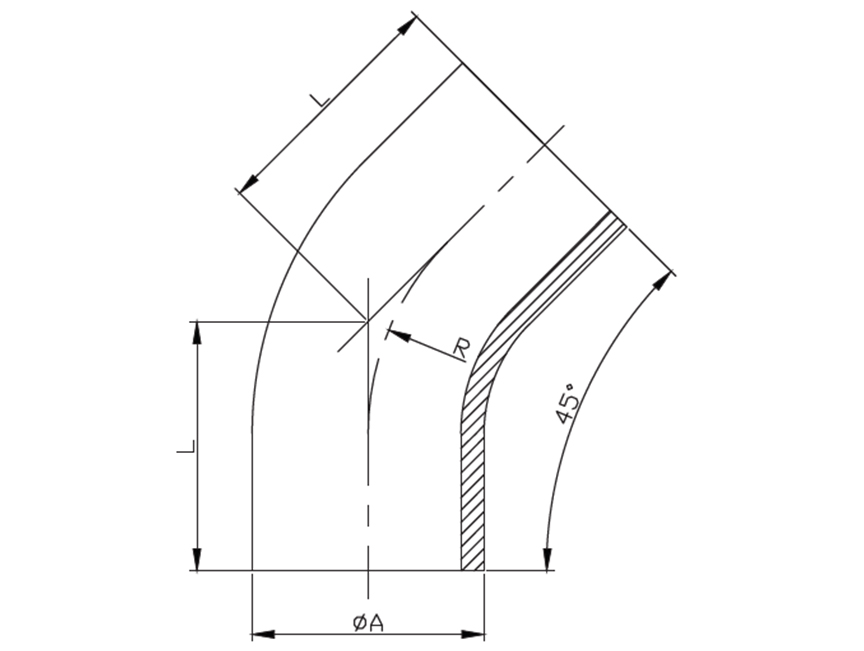

Specifications

UNIT: mm

SIZE ØA L R
1/2" 12.7 30.2 19.07
3/4" 19.05 30.2 28.7
1" 25.4 30.2 38.4
1.5" 38.1 41.3 57.5
2" 50.8 58.7 76.8
2.5" 63.5 76.2 95.8
3" 76.2 93.7 114.9
4" 101.6 122.2 153.3
6" 152.4 158.2 230.1
