90° Short Weld Elbow

Product Model: 3A-2WC

Designed to provide a smooth change in flow direction in confined tubing layouts while maintaining efficient flow and hygienic performance.

  1. Inquiry
  2. Back
  3. Next
Details

Connection: Butt-Weld

Angle: 90°

Size Range: 1/2"–6"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: 3-A Sanitary Standard

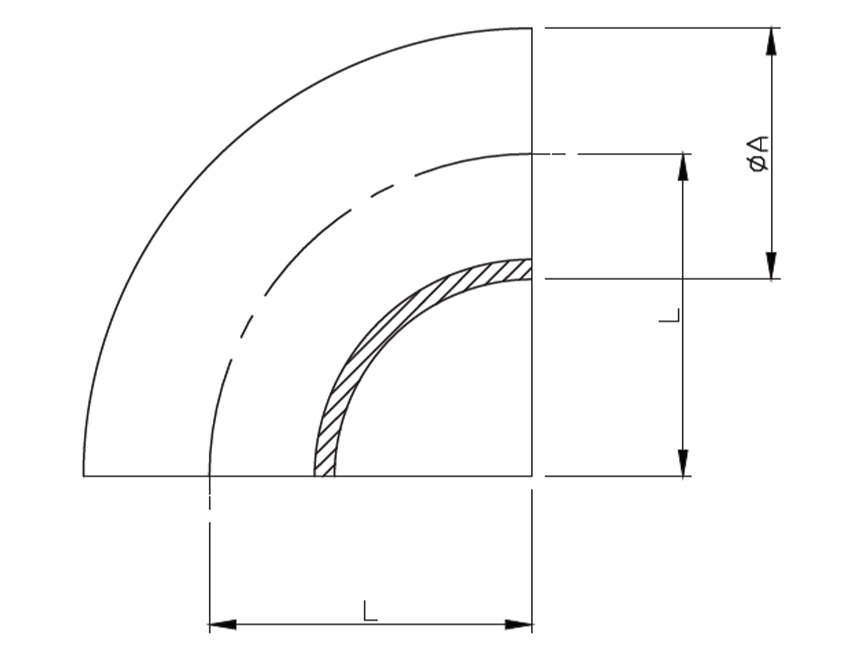

Specifications

UNIT: mm

SIZE ØA L
1/2" 12.7 19.05
3/4" 19.05 28.6
1" 25.4 38.1
1.2" 31.8 47.7
1.5" 38.1 57.2
2" 50.8 76.2
2.5" 63.5 95.3
3" 76.2 114.3
4" 101.6 152.4
6" 152.4 228.6
