45° One End Clamp Short Elbow

Product Model: 3A-2KMD

Features a Tri-Clamp connection on one end and a butt-weld connection on the other, combining the benefits of a permanent tubing installation with quick disassembly for easy equipment maintenance.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Connection: One End Tri-Clamp × One End Butt-Weld

Angle: 45°

Size Range: 1"–4"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: 3-A Sanitary Standard

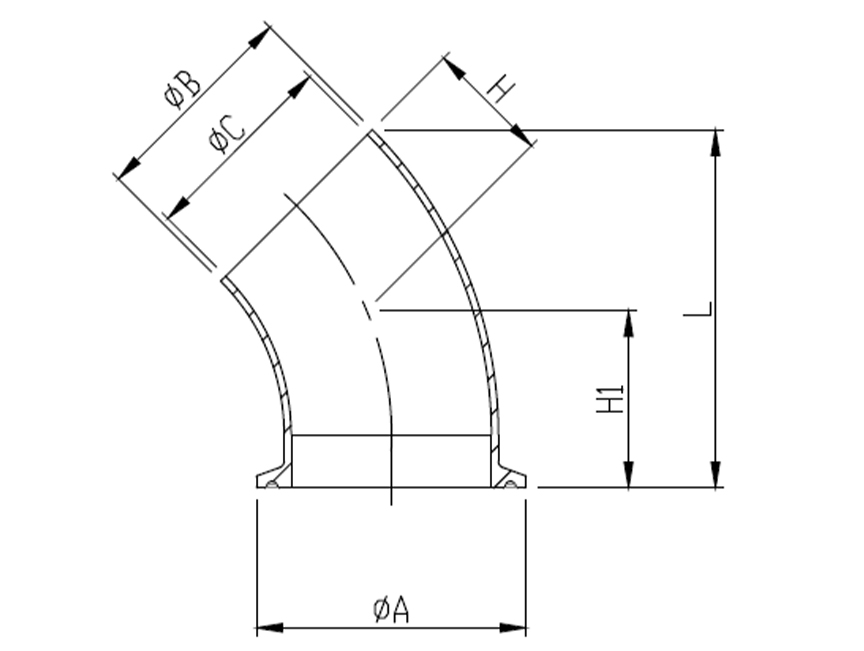

Specifications

UNIT: mm

SIZE ØA ØB ØC H1 H L
1" 50.5 25.4 22.1 28.6 15.9 48.8
1.5" 50.5 38.1 34.8 36.5 23.8 66.8
2" 64 50.8 47.5 44.5 31.8 85
2.5" 77.5 63.5 60.2 52.4 39.7 102.9
3" 91 76.2 72.9 60.3 47.6 120.9
4" 119 101.6 97.5 76.2 63.5 157.1
