90° One End Clamp Long Elbow

Product Model: 3A-L2CMD

Designed for connecting process equipment to fixed tubing, this elbow combines a secure, leak-tight connection with the convenience of quick disassembly for easy maintenance and servicing.

  1. Inquiry
  2. Back
  3. Prev
Details

Connection: One End Tri-Clamp × One End Butt-Weld

Angle: 90°

Size Range: 1"–4"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: 3-A Sanitary Standard

Specifications

UNIT: mm

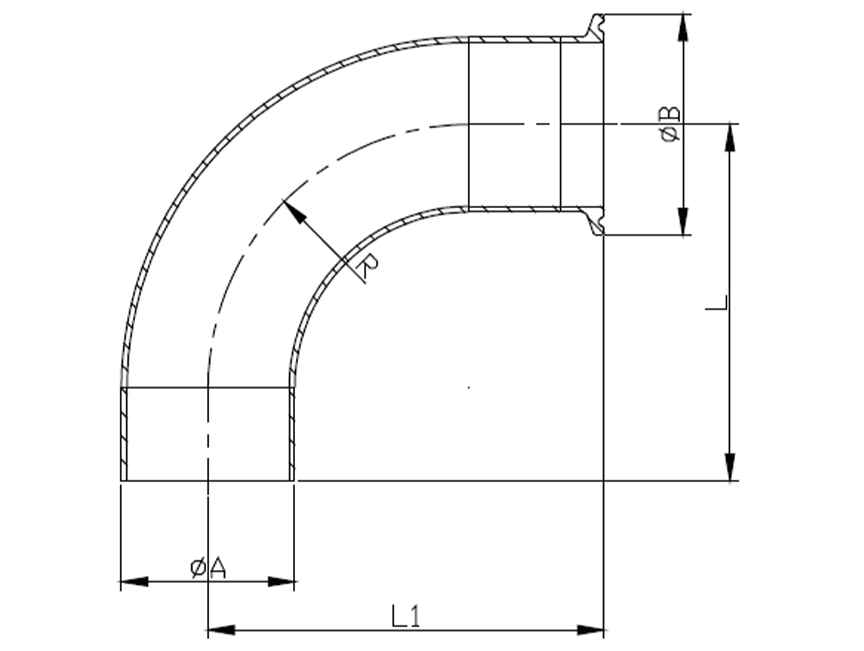

SIZE ØA ØB L L1 R
1" 25.4 50.5 52.4 65.1 38.1
1.5" 38.1 50.5 74.6 87.3 57.15
2" 50.8 64 103.2 115.9 76.2
2.5" 63.5 77.5 131.8 144.5 95.25
3" 76.2 91 160.3 173 114.3
4" 101.6 119 211.1 227 152.4
