| SIZE | ØA | L | R |
| 1/2" | 25.2 | 19.8 | 19.07 |
| 1/2" | 25.2 | 35.5 | 19.07 |
| 3/4" | 25.2 | 24.6 | 28.7 |
| 3/4" | 25.2 | 34.4 | 28.7 |
| 1" | 50.5 | 28.6 | 38.4 |
| 1.5" | 50.5 | 36.5 | 57.5 |
| 2" | 64 | 44.5 | 76.8 |
| 2.5" | 77.5 | 52.4 | 95.8 |
| 3" | 91 | 60.3 | 114.9 |
| 4" | 119 | 79.4 | 153.3 |
| 6" | 166.8 | 133.4 | 230.1 |

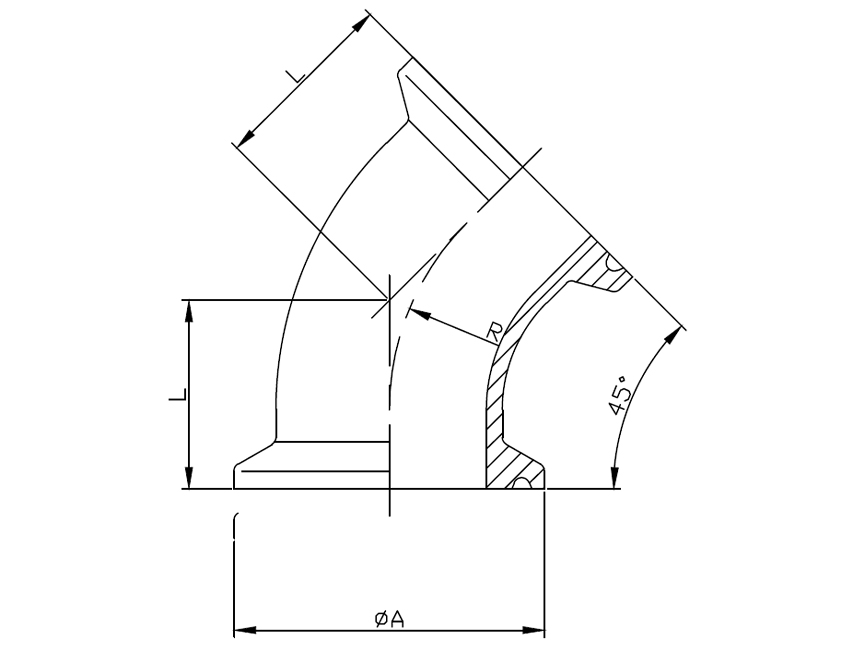

45° Short Clamp Elbow
Product Model: 3A-2KMP
Designed with a Tri-Clamp quick-connect for fast installation and removal, this 45° elbow provides a smooth change in flow direction while simplifying maintenance. It is ideal for hygienic tubing systems that require frequent cleaning and equipment servicing.
Details
Connection: Tri-Clamp
Angle: 45°
Size Range: 1/2"–6"
Material: SUS304, SUS316L
Surface Finish: Ra ≤ 0.8 μm (32 Ra)
Standard: 3-A Sanitary Standard
