90° Long Weld Elbow

Product Model: 3A-L2S

The long-radius configuration promotes smoother flow, reducing turbulence and pressure drop for improved system efficiency.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Connection: Butt-Weld

Angle: 90°

Size Range: 1/2"–6"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: 3-A Sanitary Standard

Specifications

UNIT: mm

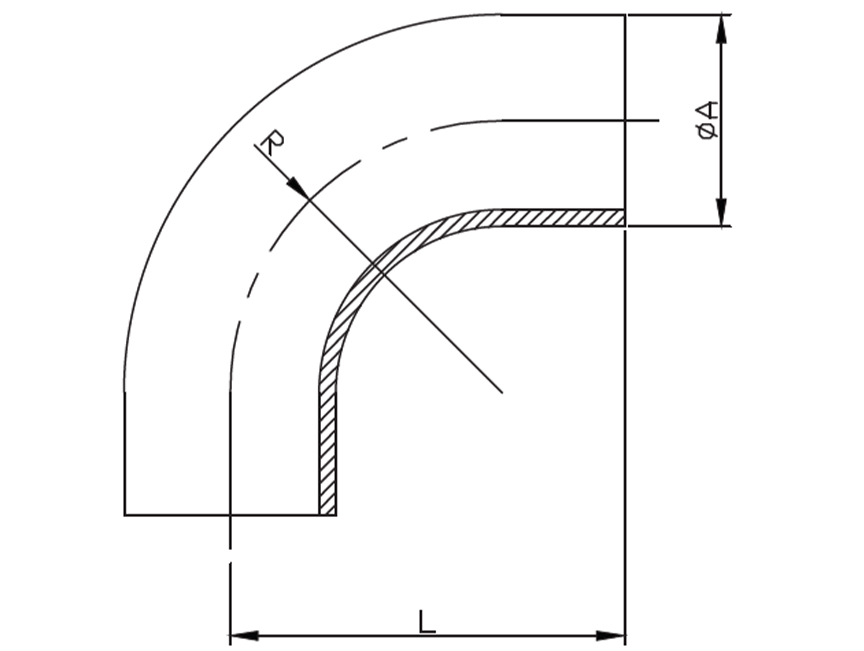

SIZE ØA L R
1/2" 12.7 76.2 19.05
3/4" 19.05 76.2 28.6
1" 25.4 52.4 38.1
1.5" 38.1 74.6 57.15
2" 50.8 103.2 76.2
2.5" 63.5 131.8 95.25
3" 76.2 160.3 114.3
4" 101.6 211.1 152.4
6" 152.4 292.1 228.6
