IDF 90° Short Weld Elbow

Product Model: IDF-2WC

Designed for tubing systems requiring a quick change in flow direction while maximizing installation space efficiency.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Connection: Butt-Weld

Angle: 90°

Size Range: 1/2"–6"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: IDF Standard

Specifications

UNIT: mm

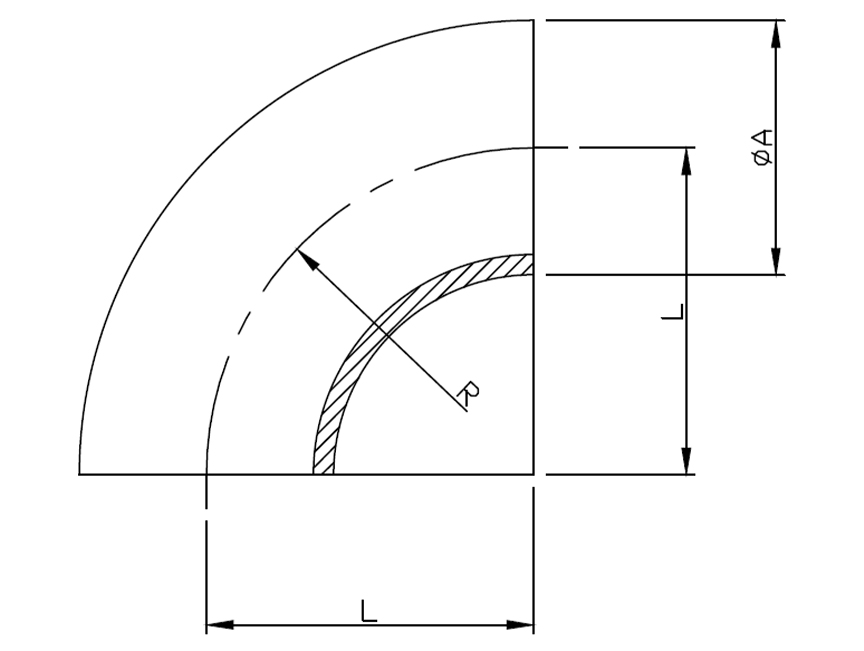

SIZE ØA L R
1" 25.4 33.5 33.5
1.2" 31.8 38 38
1.5" 38.1 48.5 48.5
2" 50.8 60.5 60.5
2.5" 63.5 83.5 83.5
3" 76.2 88.5 88.5
4" 101.6 127 127
