45° Short Weld Elbow

Product Model: 3A-2WK

Designed to provide a smooth change in flow direction with a butt-weld connection for a strong, permanent tubing system.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Connection: Butt-Weld

Angle: 45°

Size Range: 1/2"–6"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: 3-A Sanitary Standard

Specifications

UNIT: mm

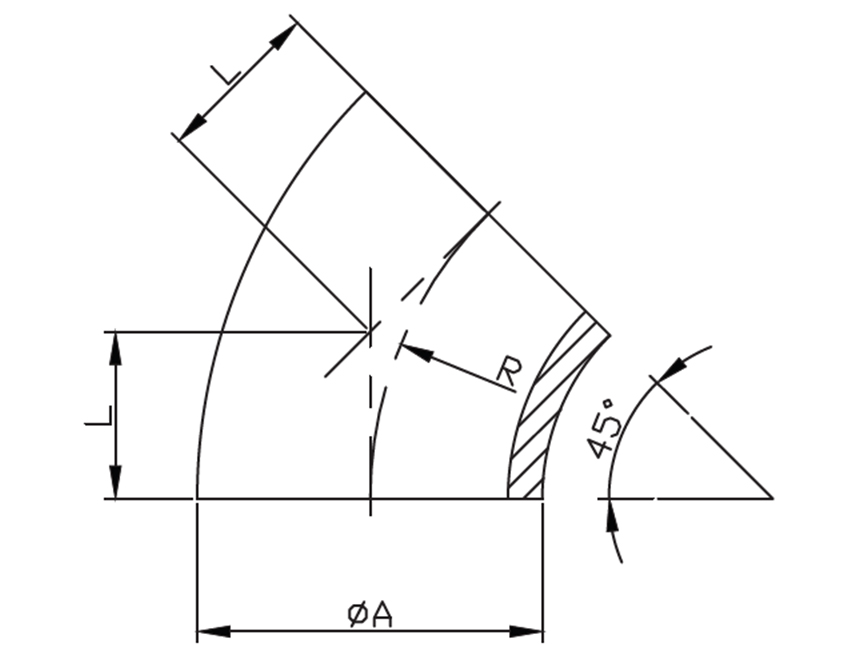

SIZE ØA L R
1/2" 12.7 7.9 19.07
3/4" 19.05 11.9 28.7
1" 25.4 15.9 38.4
1.5" 38.1 23.8 57.5
2" 50.8 31.8 76.8
2.5" 63.5 39.7 95.8
3" 76.2 47.6 114.9
4" 101.6 63.5 153.3
6" 152.4 95.3 230.1
