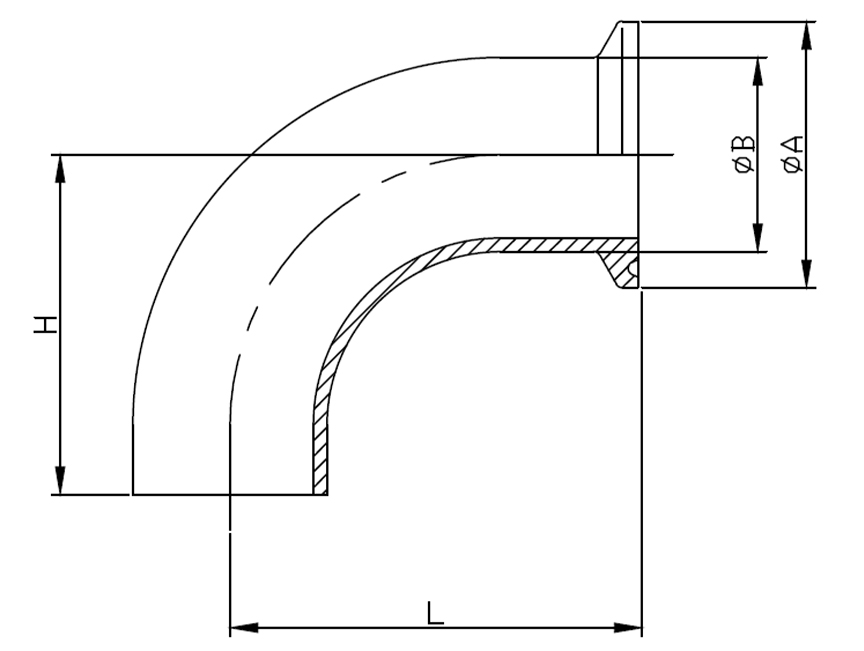

Next UNIT: mm
| SIZE | ØA | ØB | H | L |
| 1" | 50.5 | 25.4 | 38.1 | 50.8 |
| 1.5" | 50.5 | 38.1 | 57.2 | 69.9 |
| 2" | 64 | 50.8 | 76.2 | 88.9 |
| 2.5" | 77.5 | 63.5 | 95.3 | 108 |
| 3" | 91 | 76.2 | 114.3 | 127 |
| 4" | 119 | 101.6 | 152.4 | 168.3 |
Details
Connection: One End Tri-Clamp × One End Butt-Weld
Angle: 90°
Size Range: 1"–4"
Material: SUS304, SUS316L
Surface Finish: Ra ≤ 0.8 μm (32 Ra)
Standard: 3-A Sanitary Standard
