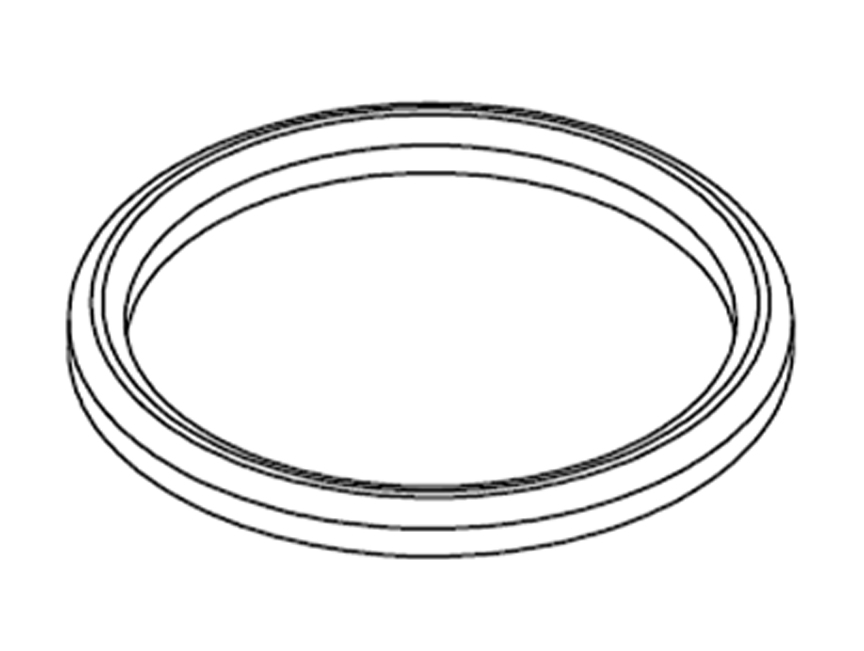

Seal for CIP Union O-Ring

O-ring designed for DIN unions, providing a stable and reliable seal for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
Details

Size: DN10–DN150

Material: EPDM, Silicone, Buna-N, Viton

Specifications

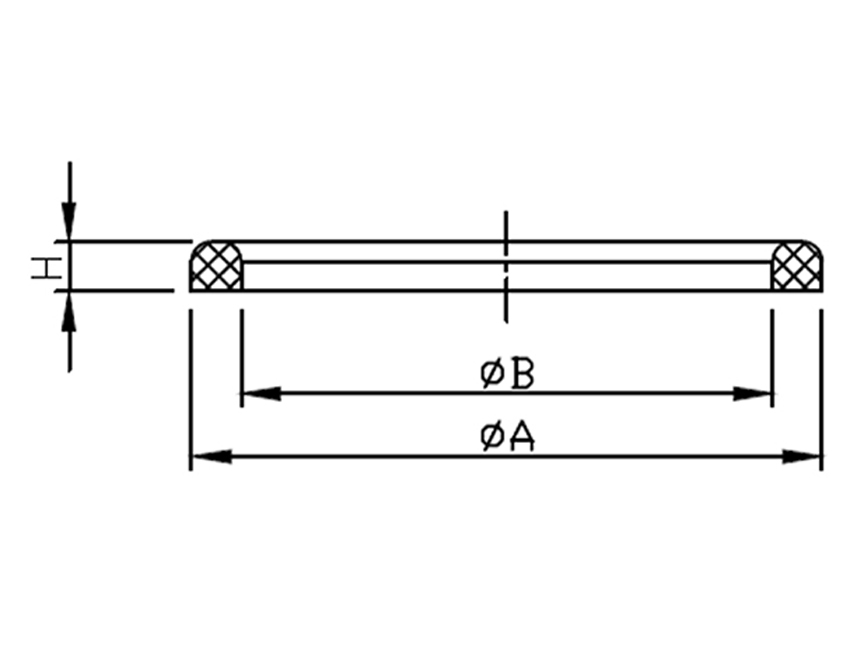

UNIT: mm

SIZE ØA ØB H
DN10 20 12 4.5
DN15 26 18 4.5
DN20 33 23 4.5
DN25 40 30 5
DN32 46 36 5
DN40 52 42 5
DN50 64 54 5
DN65 81 71 5
DN75 88 78 5
DN80 95 85 5
DN100 114 104 6
DN125 142 130 7
DN150 167 155 7
